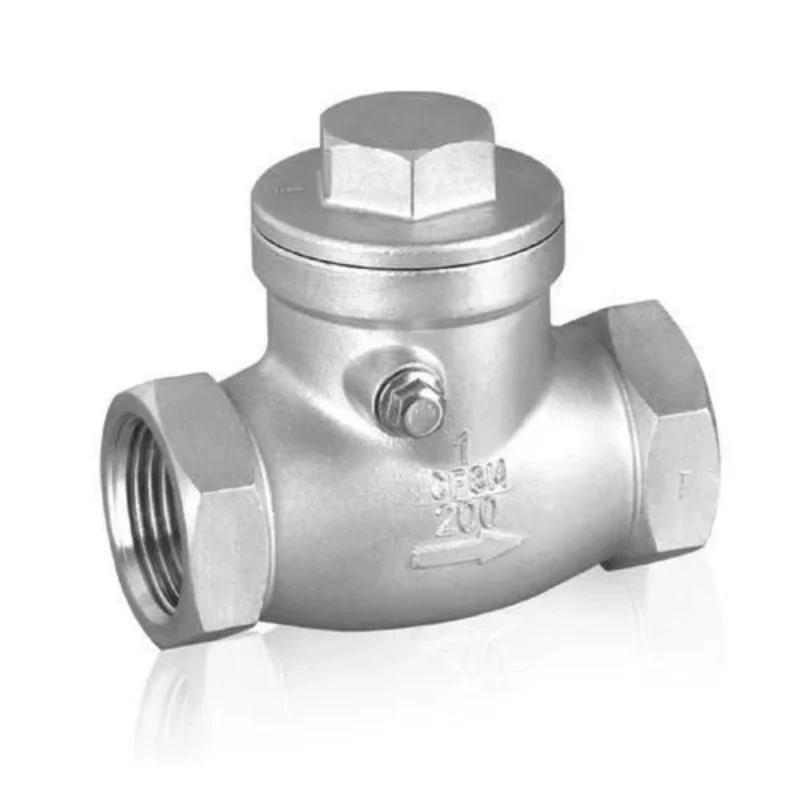

Forged Check Valve are essential components in piping systems, designed to ensure unidirectional flow and prevent backflow. These valves are compact and durable, making them suitable for a wide range of applications, including industrial, commercial, and residential systems. The female threaded connection allows for easy installation and secure fitting in pipelines, while the socket welded variant ensures a leak-proof and robust connection in high-pressure environments. These check valves are commonly made from materials like stainless steel, carbon steel, or brass, offering excellent resistance to corrosion and wear.
Available in various sizes and pressure ratings, these valves are ideal for applications such as water supply systems, chemical processing, and oil and gas operations. They are engineered to operate automatically using the flow of the medium, eliminating the need for manual intervention. Their versatility and reliability make them a preferred choice in systems where safety, efficiency, and longevity are critical considerations.
Forged Check Valve is trusted across various industries for its precision, durability, and reliability. Explore its wide-ranging applications below:
These check valves are essential in heating, ventilation, and air conditioning systems to prevent backflow in water and refrigerant pipelines. Their compact design ensures efficient operation while maintaining system pressure balance.
Used in hygienic and sanitary pipelines, these valves prevent contamination by ensuring unidirectional flow of liquids such as milk, juices, and water. Their easy-to-clean design makes them suitable for food-grade applications.
In pharmaceutical manufacturing, these valves help maintain clean and precise flow of liquids and gases. Their compatibility with sterile environments ensures adherence to strict regulatory standards.
Check valves are crucial in fire suppression systems to maintain pressure in sprinklers and prevent water backflow, ensuring the system remains operational in emergencies.
In automotive fluid systems, such as fuel, brake, and coolant lines, these check valves prevent backflow, ensuring optimal performance and safety in vehicles.
In mining operations, these valves are used in dewatering and slurry pipelines to prevent reverse flow. Their durability under high-pressure and abrasive conditions makes them ideal for such applications.
These check valves are used in pulp and paper production to regulate the flow of water, chemicals, and slurry. Their resistance to wear and corrosion ensures reliable performance in harsh environments.
CL150-285P.S.I @ 100 FCL300-740P.S.I @ 100 F CL600-1480P.S.I @ 100 F CL800-1975P.S.I @ 100 F CL1500-3705P.S.I @ 100 F

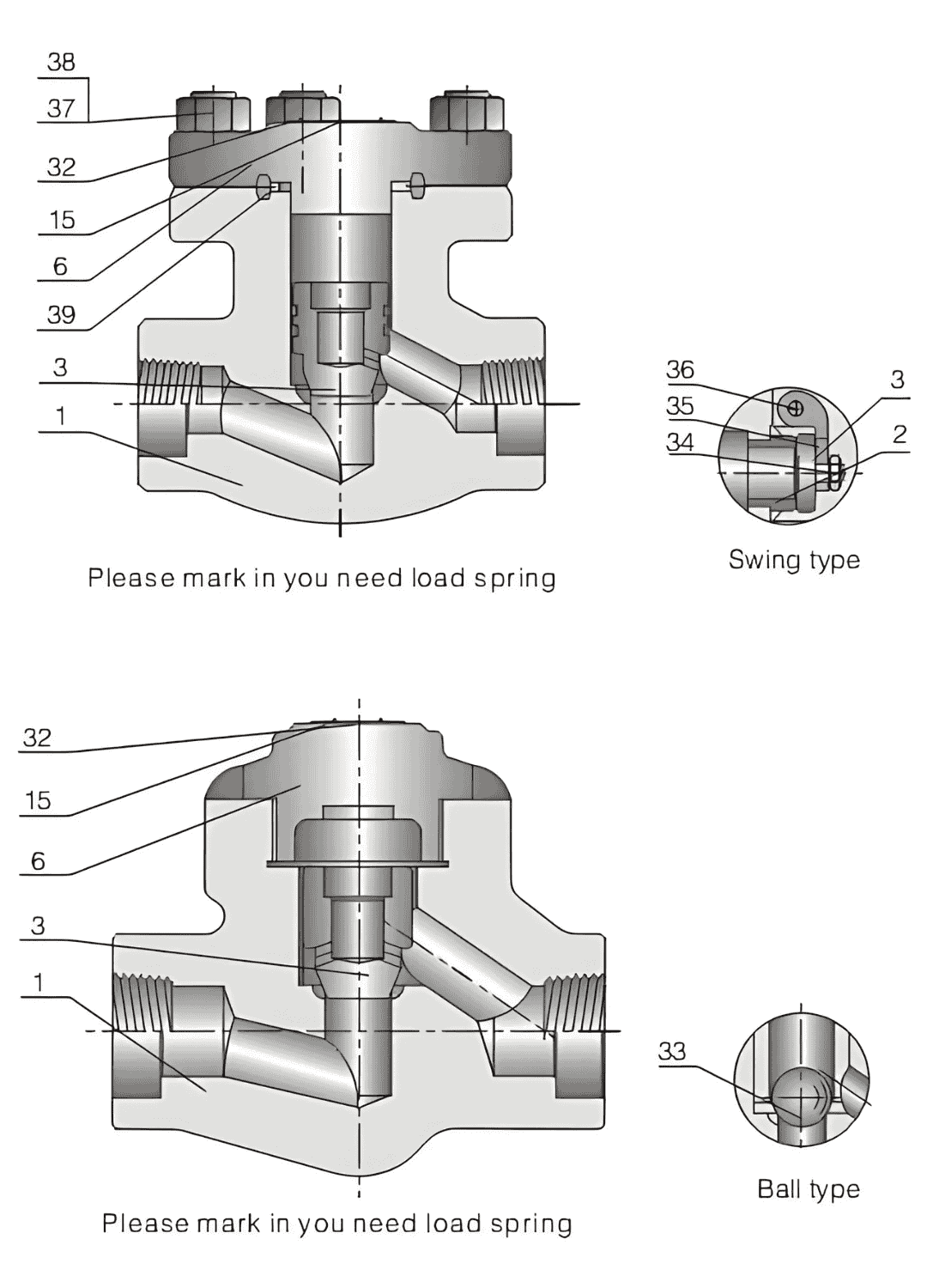

| No. | Part Name | A105/F6a | A105/F6aHFS | LF2/304 | F11/F6aHF | F304(L)/304(L) | F316(L)/316(L) | F51/F51 |
|---|---|---|---|---|---|---|---|---|
| 1 | Body | A105 | A105 | LF2 | F11 | F304(L) | F316(L) | F51 |
| 2 | Seat ring | 410 | 410HF | 304 | 410HF | 304(L) | 316(L) | F51 |
| 3 | Disc | F6a | F6a | F304 | F6aHF | F304(L) | F316(L) | F51 |
| 6 | Bonnet | A105 | A105 | LF2 | F11 | F304(L) | F316(L) | F51 |
| 15 | Nameplate | AL | AL | AL | AL | AL | AL | AL |
| 32 | Revvit | AL | AL | AL | AL | AL | AL | AL |
| 33 | Steel ball | 410 | 410 | 304 | 304 | 304(L) | 316(L) | F51 |
| 34 | Disc nut | 2H | 2H | 8 | 8 | 8(M) | 8(M) | 8M |
| 35 | Hinge | 410 | 410 | 304 | 410 | 316(L) | 316(L) | F51 |
| 36 | Pin | 410 | 410 | 304 | 410 | 304(L) | 316(L) | F51 |
| 37 | Screwed stud | B7 | B7 | L7 | B16 | B8(M) | B8(M) | B8(M) |
| 38 | Nut | 2H | 2H | 8 | 8 | 8(M) | 8(M) | 8(M) |
| 39 | Metal ring | 10 | 10 | 304 | 304 | 304(L) | 316(L) | F51 |
| Specification (NPS) | R.P | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| F.P | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | |||

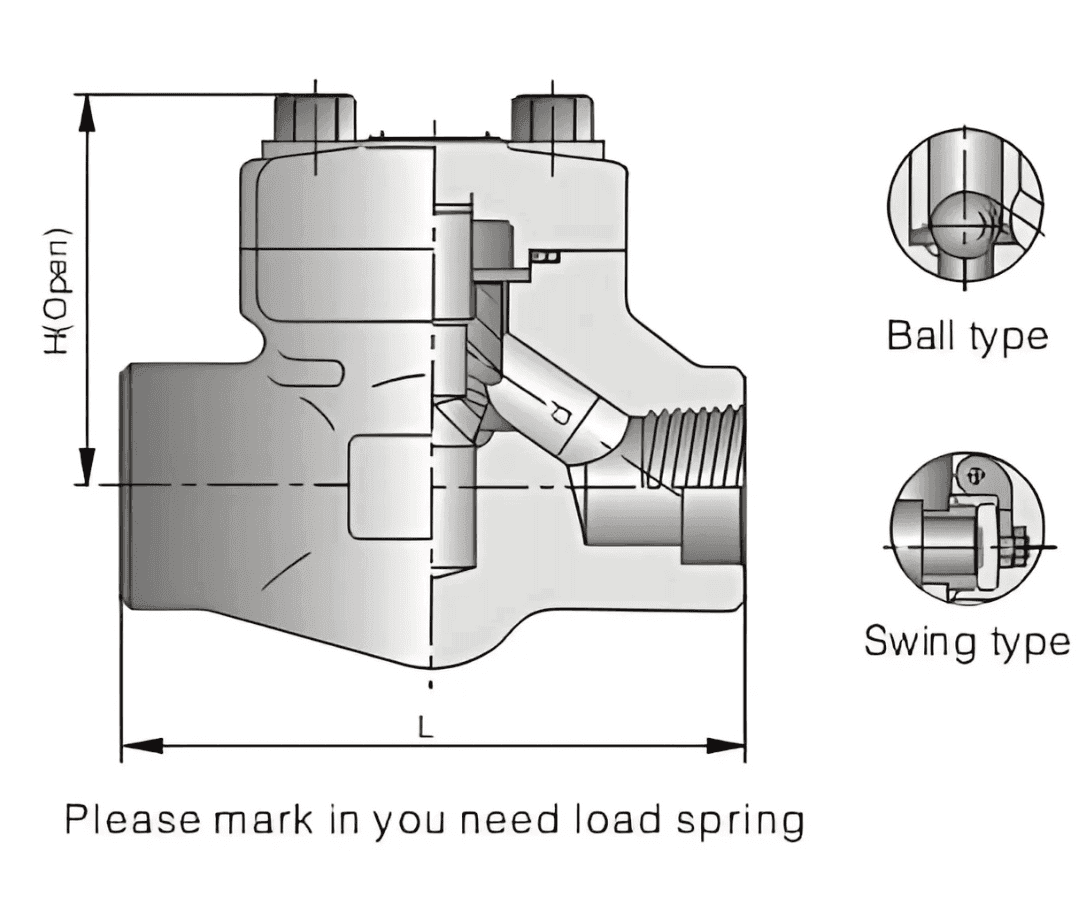

| Face to face (mm) | L | Lift | 79 | 79 | 92 | 111 | 120 | 152 | 172 | 220 | |
| Swing | 79 | 79 | 92 | 111 | 120 | 120 | 140 | 178 | |||
| Center height (Open) (mm) | W | Lift | 61 | 61 | 61 | 78 | 84 | 84 | 118 | 132 | |
| Swing | 61 | 61 | 61 | 78 | 84 | 84 | 120 | 133 | |||
| Flow port dimension (mm) | d | Lift | 7 | 9 | 13 | 17.5 | 23 | 30 | 35 | 46 | |
| Swing | 8 | 10.5 | 13.5 | 18 | 24 | 29 | 36.5 | 45 | |||
| Weight (Kg) | Lift | 1.2 | 1.5 | 1.7 | 3.3 | 4.2 | 4.2 | 10.5 | 12.5 | ||
| Swing | 1.4 | 15 | 1.7 | 3.3 | 4.2 | 4.2 | 8.5 | 10.9 | |||
| Specification (NPS) | R.P | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | |||
|---|---|---|---|---|---|---|---|---|---|---|
| F.P | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | ||

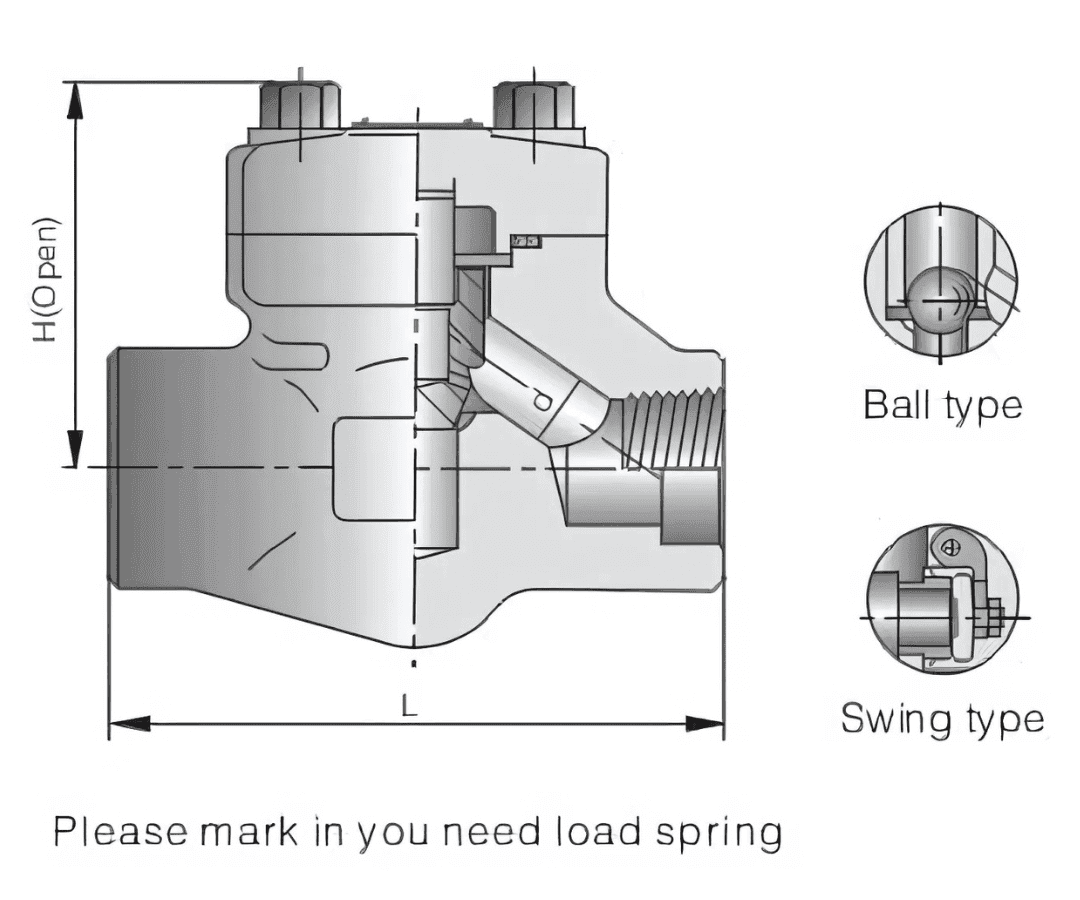

| Face to face (mm) | L | Lift | 92 | 111 | 111 | 120 | 152 | 172 | 220 | |
| Swing | 92 | 111 | 111 | 120 | 120 | 140 | 178 | |||
| Center height (Open) (mm) | W | Lift | 61 | 78 | 78 | 84 | 103 | 118 | 132 | |
| Swing | 61 | 78 | 78 | 84 | 101 | 120 | 133 | |||
| Flow port dimension (mm) | d | Lift | 7 | 12 | 15 | 20 | 28 | 32 | 40 | |
| Swing | 8 | 10.5 | 13.5 | 187 | 24 | 29 | 45 | |||
| Weight (Kg) | Lift | 1.5 | 3.4 | 3.3 | 4.2 | 6.3 | 10.5 | 12.5 | ||
| Swing | 1.5 | 3.4 | 3.3 | 4.2 | 5.0 | 8.5 | 10.9 | |||
| Specification (NPS) | F.P | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 |
|---|---|---|---|---|---|---|---|---|---|
| Face to face (mm) | L | 186 | 186 | 186 | 232 | 232 | 279 | ||

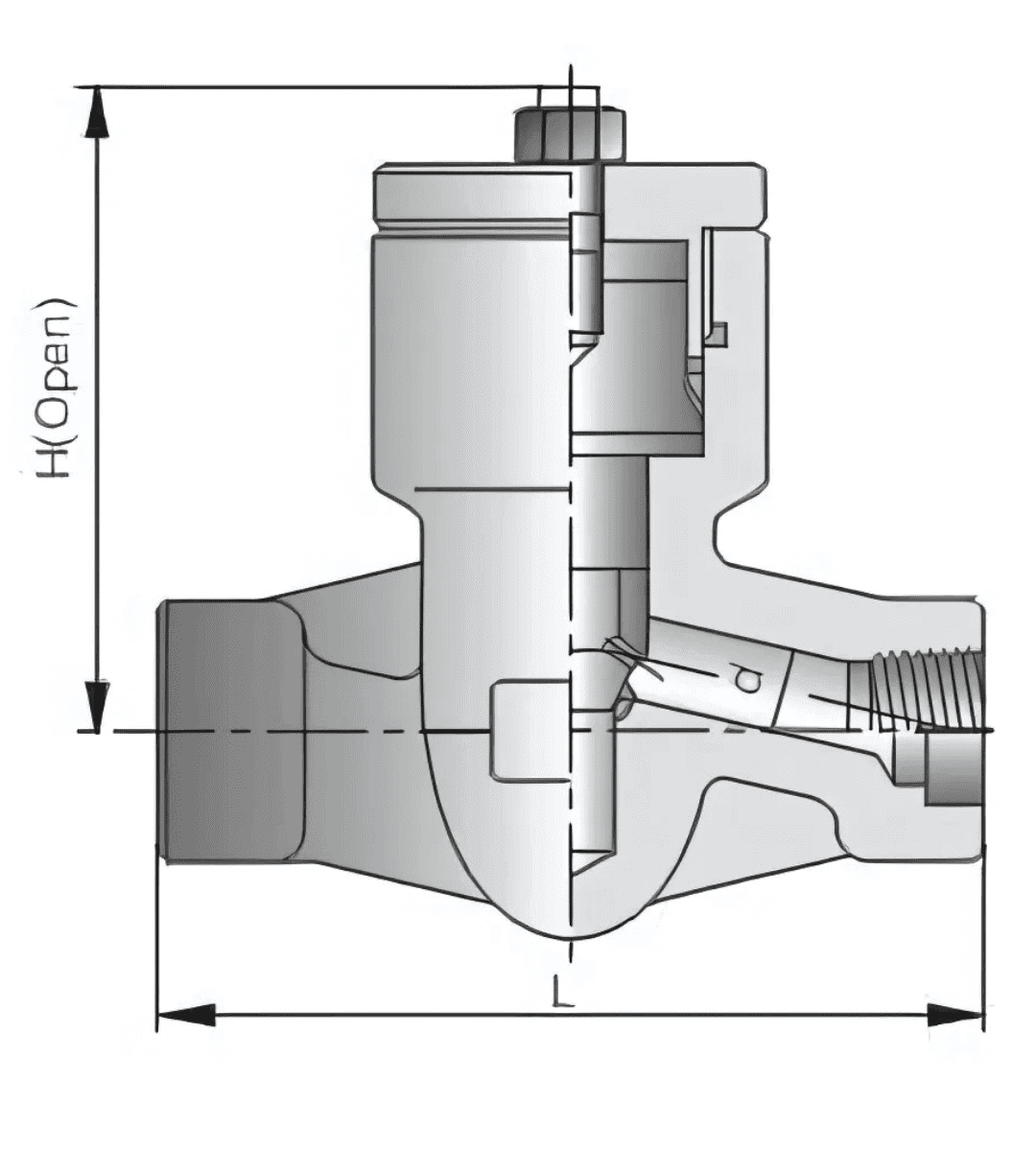

| Center height (Open) (mm) | H | 117 | 117 | 117 | 152 | 150 | 195 | ||
| Flow port dimension (mm) | d | 11 | 14 | 14 | 25 | 28 | 35 | ||
| Weight(Kg) | 11.8 | 11 | 11 | 23 | 26.4 | 39 | |||
| Specification (NPS) | F.P | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Face to face (mm) | CL150 | L(RF) L1(BW) | -- | -- | 108 | 118 | 127 | 140 | 165 | 203 |
| CL300 | -- | -- | 153 | 178 | 203 | 216 | 229 | 267 | ||
| CL600 | -- | -- | 165 | 191 | 216 | 229 | 241 | 292 | ||
| Center height (Open) (mm) | CL150 | H | -- | -- | 77 | 81 | 93 | 95 | 103 | 118 |
| CL300/600 | -- | -- | 61 | 78 | 84 | 101 | 120 | 133 | ||
| Flow port dimension (mm) | d | -- | -- | 10 | 13 | 17.5 | 23 | 30 | 35 | |
| Weight (Kg) | CL150 | -- | -- | 3.6 | 4.6 | 8.5 | 9.25 | 12.5 | 14.8 | |
| -- | -- | 3.0 | 3.6 | 7.6 | 8.5 | 11.3 | 13.6 | |||
| CL300 | -- | -- | 3.7 | 4.8 | 8.8 | 9.6 | 13.7 | 17.8 | ||
| -- | -- | 3.2 | 4.3 | 8.0 | 8.6 | 12.7 | 16.2 | |||
| CL600 | -- | -- | 4.0 | 5.8 | 9.5 | 10.4 | 15.6 | 24.5 | ||
| -- | -- | 3.4 | 5.1 | 8.8 | 9.2 | 14.8 | 22.5 | |||
| Specification (NPS) | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | ||
|---|---|---|---|---|---|---|---|---|

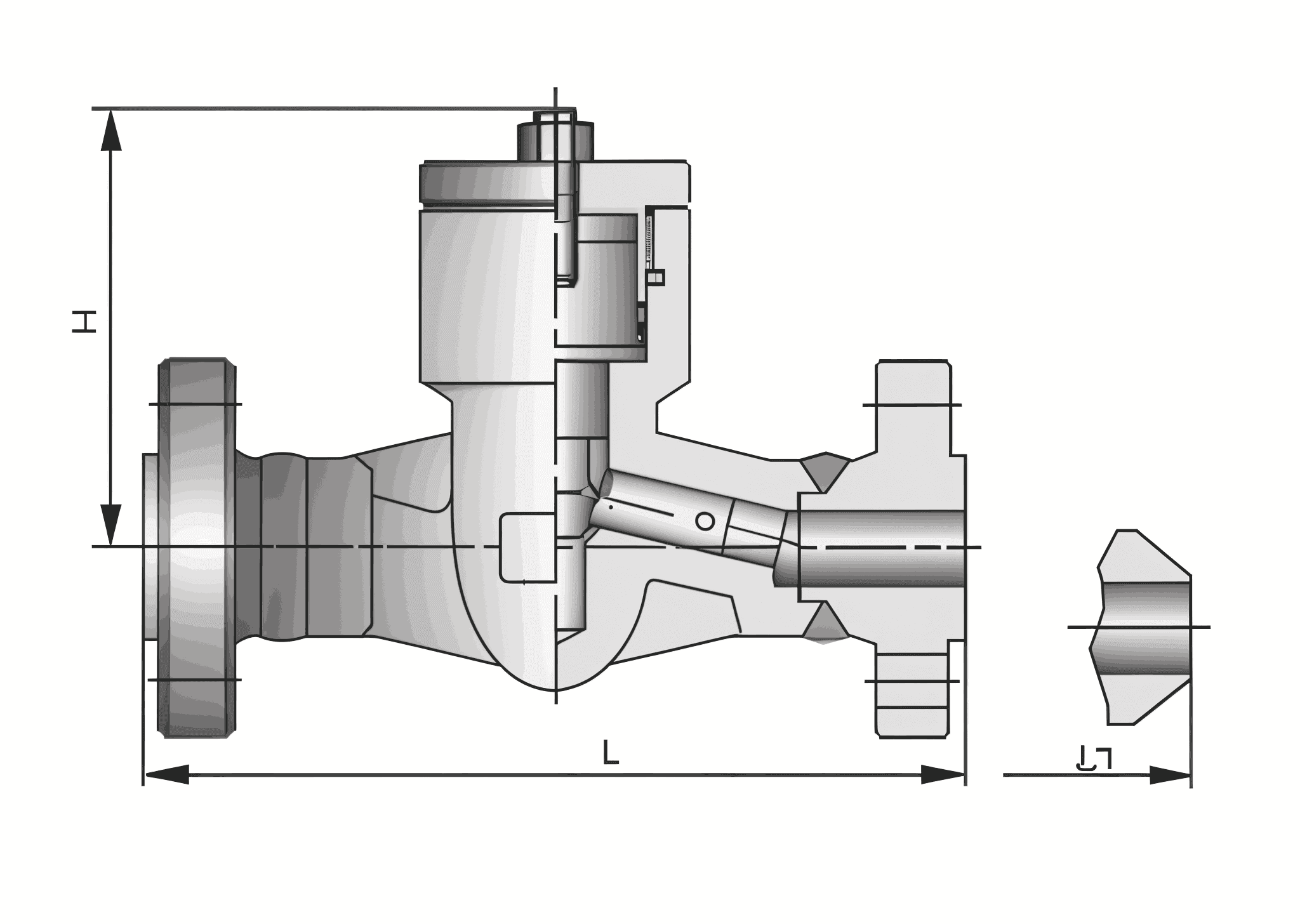

| Face to face (mm) | L(R)/L1(BW) | 216 | 229 | 254 | 280 | 305 | 371 | |
| Center height (open) (mm) | H | 81 | 93 | 95 | 101 | 118 | 130 | |
| Flow port dimension (mm) | d | Lift | 12 | 15 | 20 | 28 | 32 | 40 |
| Swing | 13.5 | 18 | 24 | 29 | 36.5 | 45 | ||
| Weight(Kg) | Lift | 5.2 | 6.8 | 10.5 | 28 | 18 | 24 | |
| Swing | 5.0 | 6.1 | 10.8 | 29 | 17.6 | 27 | ||
| Specification (NPS) | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | |
|---|---|---|---|---|---|---|---|---|
| Face to face (mm) | L(RJ)L1 (BW) | -- | 216 | 229 | 254 | 280 | 305 | 268 |
| L(RTJ) | -- | 216 | 229 | 254 | 280 | 305 | 371 | |
| Center height (open) (mm) | H | -- | 117 | 117 | 117 | 152 | 152 | 195 |
| Flow port dimension (mm) | d | -- | 12 | 15 | 20 | 28 | 32 | 40 |
| Weight (Kg) | -- | 10.5 | 11.9 | 13.9 | 19.9 | 26.9 | 32.5 | |
| Specification (NPS) | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | ||
|---|---|---|---|---|---|---|---|---|
| Face to face (mm) | L(RJ)L1(BW) | 264 | 273 | 308 | 349 | 384 | 450 | |
| L(RTJ) | 264 | 273 | 308 | 352 | 387 | 454 | ||
| Center height (open) (mm) | H | 81 | 93 | 95 | 101 | 118 | 130 | |
| Flow port dimension (mm) | d | Lift | 12 | 15 | 20 | 28 | 32 | 40 |
| Swing | 10.5 | 13.5 | 18 | 24 | 29 | 36.5 | ||
| Weight (Kg) | Lift | 17 | 21 | 28 | 14.5 | 58 | 85 | |
| Swing | 5.0 | 6.1 | 10.8 | 11.2 | 17.6 | 27 | ||
| Specification (NPS) | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | |
|---|---|---|---|---|---|---|---|---|
| Face to face (mm) | L(RJ)L1(BW) | -- | 264 | 273 | 308 | 349 | 384 | 450 |
| L(RTJ) | -- | 264 | 273 | 308 | 352 | 387 | 454 | |
| Center height (open) (mm) | H | -- | 117 | 117 | 117 | 152 | 152 | 195 |
| Flow port dimension (mm) | d | -- | 12 | 15 | 20 | 32 | 28 | 40 |
| Weight (Kg) | -- | 12.6 | 14.9 | 16.5 | 24.8 | 30 | 35 | |
