Instrumentation Ball Valve are precision-engineered valves designed to provide reliable control over fluid or gas flow in instrumentation and process control systems. These valves utilize a quarter-turn mechanism with a ball-shaped closure device featuring a bore through its center. When the ball is rotated, the bore aligns with the flow path to allow fluid passage or rotates perpendicular to block it, ensuring quick and efficient shutoff or flow regulation.
Instrumentation ball valve are typically constructed from high-grade materials like stainless steel, ensuring durability and resistance to corrosion in challenging environments. They are available in various sizes and configurations to accommodate diverse industrial applications, with some models offering multi-port options for enhanced flexibility.
Instrumentation Ball Valve is trusted across various industries for its precision, durability, and reliability. Explore its wide-ranging applications below:
Control of hydrocarbon fluids, sampling, and pressure measurement systems.
Flow regulation in filtration, sampling, and chemical dosing systems.
Steam systems, pressure monitoring, and boiler instrumentation.
Flow control in chemical dosing, mixing systems, and sampling lines.
Sterile fluid control and pressure monitoring in cleanroom environments.
Control of slurry, reagent dosing, and pressure monitoring systems.
Control of coolant flow and monitoring of system pressures.

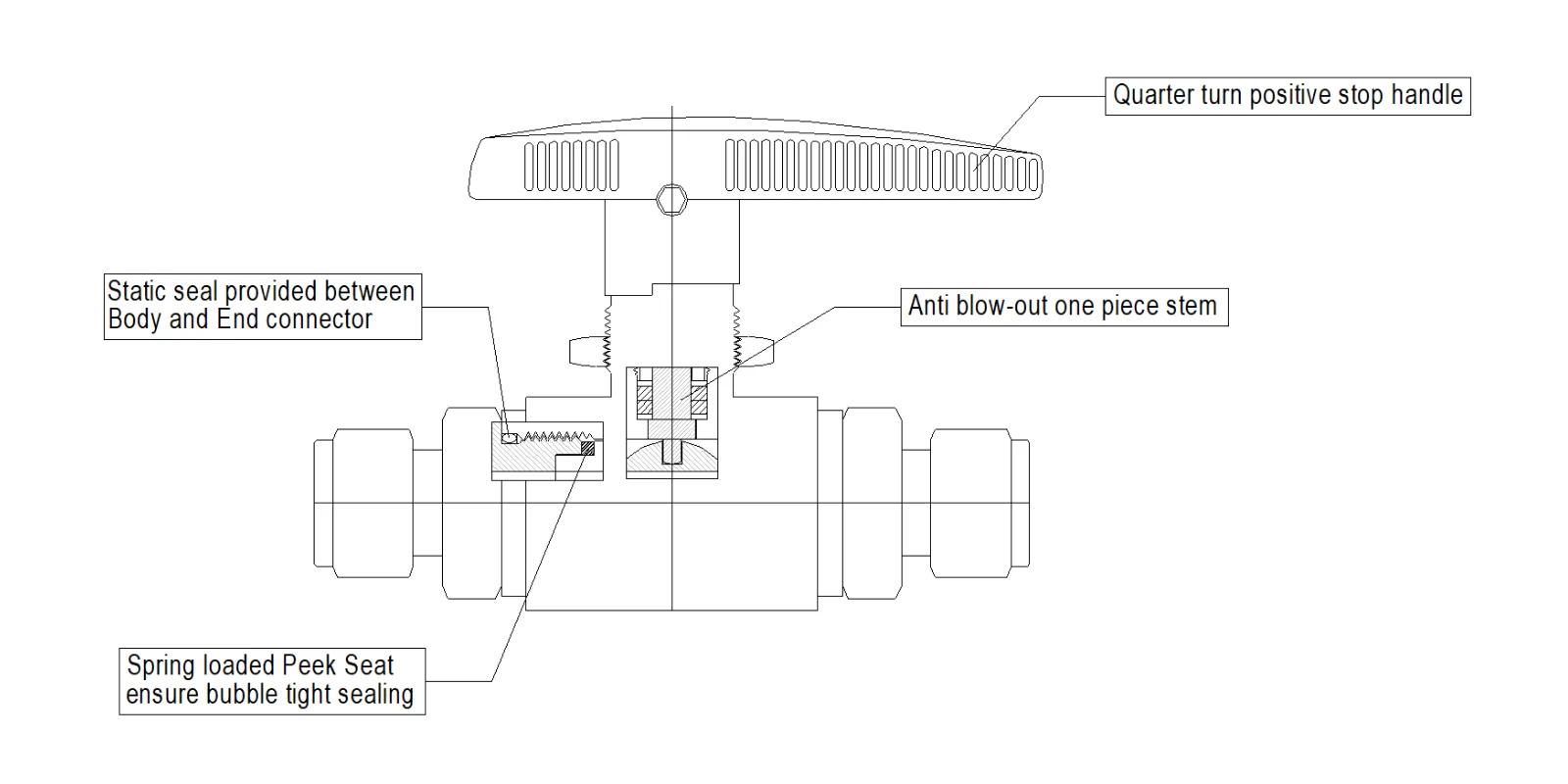

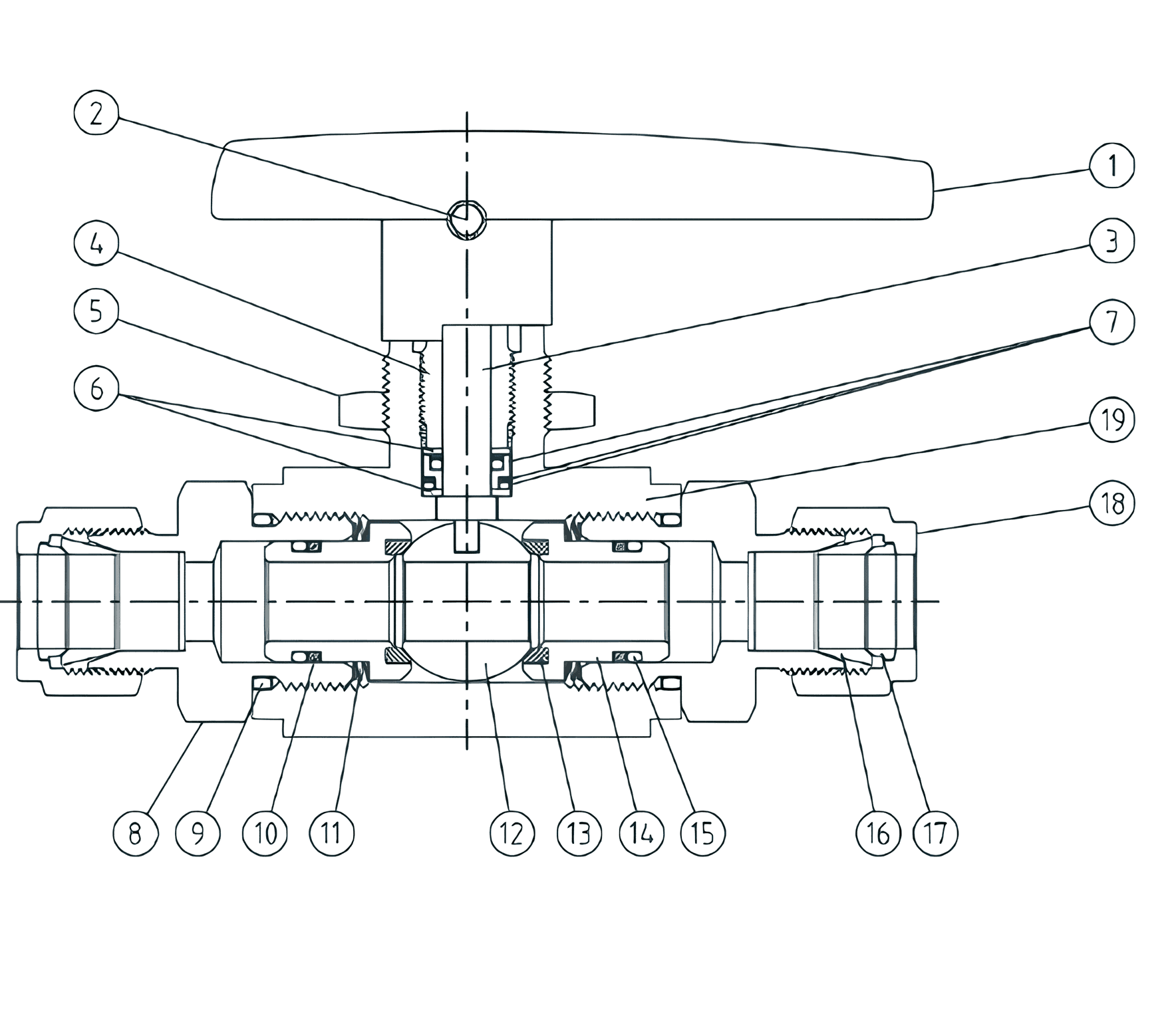

| Sr No | Description | Material |
|---|---|---|
| 1 | HANDLE | PHENOLIC NYLON |
| 2 | HANDLE LOCK SCREW | STAINLESS STEEL |
| 3 | VALVE STEM | SS316 |
| 4 | PACKING NUT | SS316 |
| 5 | PANEL NUT | SS316 |
| 6 | STEM WASHER | SS316 |
| 7 | STEM SEALING WITH | SS316 |
| 'O' Ring | VITON | |
| BACKUP WASHER | PTFE | |
| 8 | END CONNECTOR | SS316 |
| 9 | CONNECTOR 'O' RING | VITON |
| 10 | SEAT RETAINER BACKUP RING | PTFE |
| 11 | SPRING | STAINLESS STEEL |
| 12 | BALL | SS316 |
| 13 | VALVE SEAT | PEEK |
| 14 | SEAT RETAINER | SS316 |
| 15 | RETAINER ‘O’ RING | VITON |
| 16 | FRONT FERRULE | SS316 |
| 17 | BACK FERRULE | SS316 |
| 18 | FERRULE NUT | SS316 |
| 19 | VALVE BODY | SS316 |
| END CONNECTOR Inlet & Outlet | Orifice | cv | DIMENSION (MM) | PART NO. | ||||||
|---|---|---|---|---|---|---|---|---|---|---|

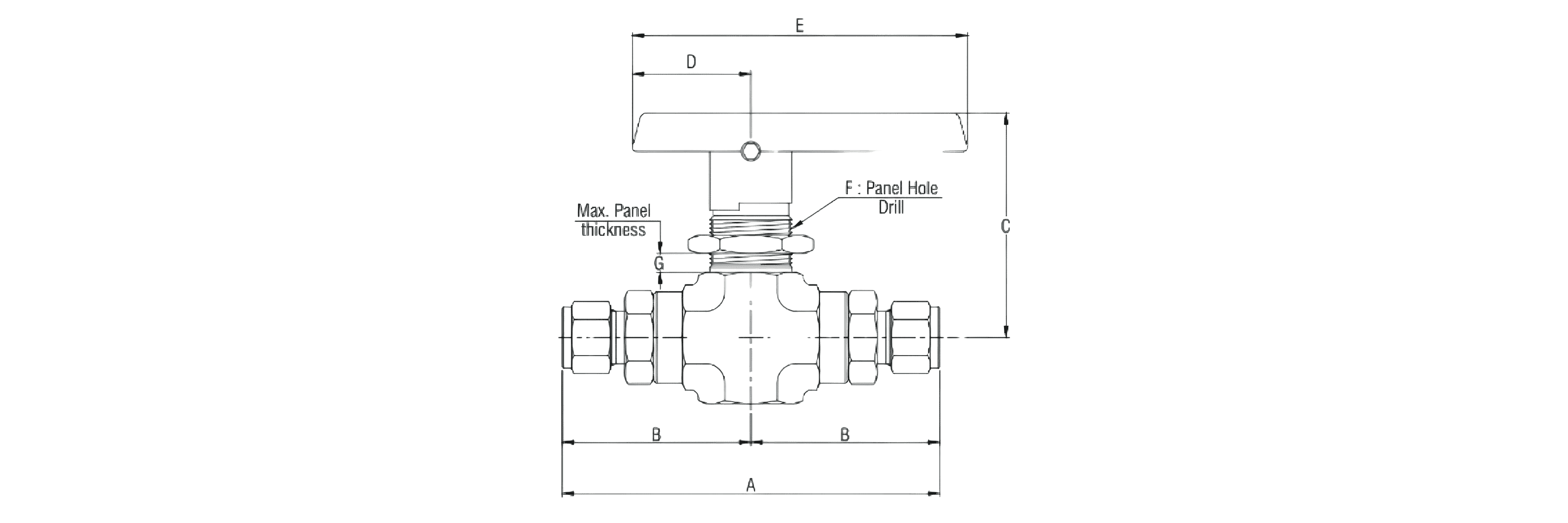

| A | B | C | D | E | F | G | ||||
| 1/8" ODT | 2.4 | 0.21 | 69.0 | 34.5 | 25.0 | 19.1 | 47.8 | 14.7 | 3.3 | YBV01-TT2 |
| 1/8" Female NPT | 4.2 | 0.93 | 54.4 | 27.2 | 25.0 | 19.1 | 47.8 | 14.7 | 3.3 | YBV01-FF2N |
| 1/8" Male NPT | 4.2 | 0.93 | 69.0 | 34.5 | 25.0 | 19.1 | 47.8 | 14.7 | 3.3 | YBV01-MM2N |
| 1/4" Male NPT | 4.2 | 0.93 | 68.8 | 34.5 | 25.0 | 19.1 | 47.8 | 14.7 | 3.3 | YBV01-MM4 |
| 3mm ODT | 2.2 | 0.18 | 68.8 | 34.5 | 25.0 | 19.1 | 47.8 | 14.7 | 3.3 | YBV01-T3M |
| 1/4" ODT | 4.7 | 1.04 | 83.4 | 38.4 | 41.5 | 25.4 | 63.5 | 19.6 | 6.4 | YBV01-TT4 |
| 1/4" Female NPT | 6.4 | 2.34 | 38.4 | 38.4 | 41.5 | 25.4 | 63.5 | 19.6 | 6.4 | YBV01-FF4 |
| 1/4" Male NPT | 6.4 | 2.34 | 82.8 | 41.5 | 41.5 | 25.4 | 63.5 | 19.6 | 6.4 | YBV01-MM4 |
| 3/8" ODT | 6.4 | 2.34 | 84.0 | 45.7 | 41.5 | 25.4 | 63.5 | 19.6 | 6.4 | YBV01-TT6 |
| 6mm ODT | 4.7 | 1.04 | 89.0 | 38.4 | 41.5 | 25.4 | 63.5 | 19.6 | 6.4 | YBV01-TT6M |
| 8mm ODT | 4.7 | 1.04 | 99.0 | 49.5 | 66.5 | 30.1 | 63.5 | 22.9 | 9.7 | YBV01-TT8M |
| 10mm ODT | 6.4 | 2.34 | 99.0 | 49.5 | 66.5 | 30.1 | 63.5 | 22.9 | 9.7 | YBV01-TT10M |
| 3/8" Female NPT | 10.3 | 6.42 | 99.0 | 49.5 | 66.5 | 30.1 | 63.5 | 22.9 | 9.7 | YBV01-FF6 |
| 1/2" Female NPT | 10.3 | 6.42 | 118.8 | 59.4 | 66.5 | 30.1 | 101.6 | 22.9 | 9.7 | YBV01-FF8 |
| 1/2" ODT | 10.3 | 6.42 | 99.0 | 49.5 | 66.5 | 30.1 | 101.6 | 22.9 | 9.7 | YBV01-TT8 |
| 1/2" Male NPT | 10.3 | 6.42 | 112.8 | 56.4 | 66.5 | 30.1 | 101.6 | 22.9 | 9.7 | YBV01-MM8 |
| 3/4" ODT | 9.5 | 5.57 | 118.8 | 59.4 | 66.5 | 38.1 | 101.6 | 22.9 | 9.7 | YBV01-TT12 |
| 12mm ODT | 9.5 | 5.57 | 118.8 | 59.4 | 66.5 | 38.1 | 101.6 | 22.9 | 9.7 | YBV01-TT12M |
| 16mm ODT | 10.3 | 6.42 | 11.84 | 59.4 | 66.5 | 38.1 | 101.6 | 22.9 | 9.7 | YBV01-TT16M |
Dimensions are for reference only and subject to change
| FRACTIONAL | METRIC | SIZE | CODE | SIZE | CODE |
|---|---|---|---|
| 1/4" ODT | 4 | 6mm ODT | 6M |
| 3/8" ODT | 6 | 8mm ODT | 8M |
| 1/2" ODT | 8 | 10mm ODT | 10M |
| 3/4" ODT | 12 | 12mm ODT | 12M |
| 1" ODT | 16 | 16mm ODT | 16M |
| FRACTIONAL | METRIC | SIZE | CODE | SIZE | CODE |
|---|---|---|---|
| 1/4" ODT | 4 | 6mm ODT | 6M |
| 3/8" ODT | 6 | 8mm ODT | 8M |
| 1/2" ODT | 8 | 10mm ODT | 10M |
| 3/4" ODT | 12 | 12mm ODT | 12M |
| 1" ODT | 16 | 16mm ODT | 16M |
