Bellow Seal Globe Valve are specifically designed to provide leak-proof performance and efficient flow control in compact spaces. The short pattern design makes these valves ideal for systems with limited space while still offering the benefits of a bellow seal, which prevents leakage along the stem. This ensures that no fluid or gas escapes even under high pressure and temperature conditions. These valves are constructed from corrosion-resistant materials such as stainless steel or alloy steel, ensuring durability and long-term performance in harsh environments.
These valves are commonly used in industries where space is constrained but a high degree of sealing is required, such as in oil and gas, chemical processing, and power generation. Their compact design combined with the bellow seal makes them an excellent choice for systems that handle hazardous or aggressive fluids, ensuring safety and reliability without compromising performance.
Bellow Sealed Globe Valve is trusted across various industries for its precision, durability, and reliability. Explore its wide-ranging applications below:
Used in compact pipeline and refinery systems to ensure leak-proof performance and reliable control of oil and gas flow in high-pressure environments.
Regulates the flow of aggressive chemicals and gases in confined spaces, providing a leak-tight seal to prevent contamination and maintain safety.
Used in high-pressure steam and cooling systems, providing efficient flow control and leak-proof sealing in space-limited areas within power plants.
Compact and reliable for regulating fluid systems in marine applications, ensuring leak-free operation in confined spaces under harsh conditions.
Efficiently controls the flow of water and refrigerants in compact HVAC systems, offering leak-proof performance with minimal space requirements.
CL150-285P.S.I @ 100 FCL300-740P.S.I @ 100 F CL600-1480P.S.I @ 100 F CL800-1975P.S.I @ 100 F CL1500-3705P.S.I @ 100 F

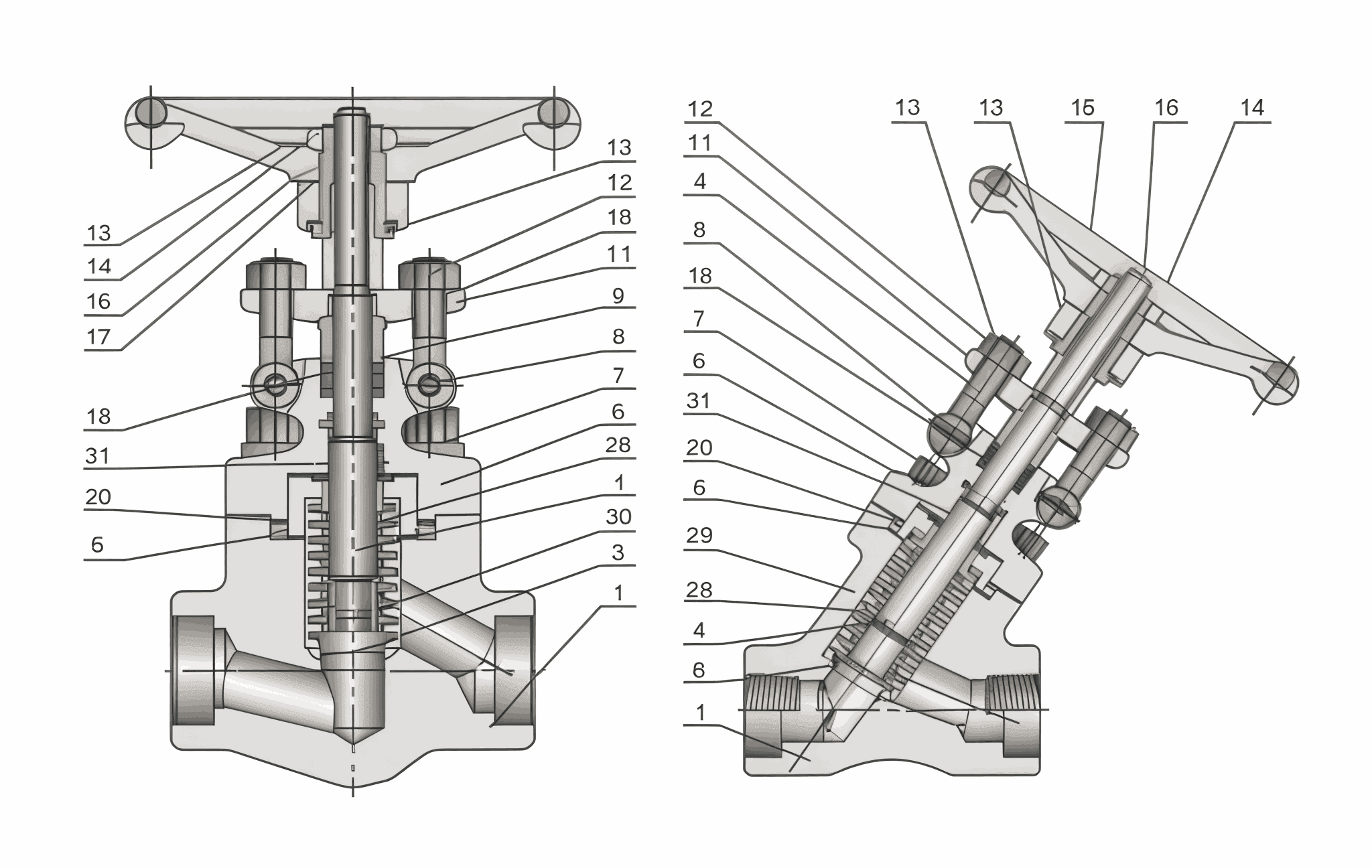

| No. | Part Name | A105/F6a | A105/F6aHFS | F11/F6aHF | F304(L)/304(L) | F316(L)/316(L) |
|---|---|---|---|---|---|---|
| 1 | Body | A105 | A105 +HF | A105 + HF | F304(L) | F316(L) |
| 3 | Disc | F6a | F6a | F6aHF | F304(L) | F316(L) |
| 4 | Stem | 410 | 410 | 410 | 304(L) | 316(L) |
| 5 | Gasket | 304+ Flexible graphite | 304+ Flexible graphite | 304+ Flexible graphite | 304+ Flexible graphite | 304+ Flexible graphite |
| 6 | Bonnet | A105 | A105 | A105 | F304(L) | F316(L) |
| 7 | Bolt | B7 | B7 | B7 | B8(M) | B8(M) |
| 8 | Pin | 410 | 410 | 410 | 304 | 304 |
| 9 | Packing bushing | 410 | 410 | 410 | 304(L) | 316(L) |
| 10 | Fyelet bolt | B7 | B7 | B7 | B8(M) | B8(M) |
| 11 | Packing gland | A105 | A105 | A105 | F304 | F304 |
| 12 | Hex nut | 2H | 2H | 2H | 8(M) | 8(M) |
| 13 | Stem nut | 420 | 420 | 420 | 420 | 420 |
| 14 | Locking Nut | 35 | 35 | 35 | 35 | 35 |
| 15 | Nameplate | AL | AL | AL | AL | AL |
| 16 | Handwheel | A197 | A197 | A197 | A197 | A197 |
| 17 | Lubricating Gasket | 410 | 410 | 410 | 410 | 410 |
| 18 | Packing | Graphite | Graphite | Graphite | Graphite | Graphite |
| 20 | Gasket | 304+ Flexible graphite | 304+ Flexible graphite | 304+ Flexible graphite | 304+ Flexible graphite | 304+ Flexible graphite |
| 28 | Bellow | 304 | 304 | 304 | 304(L) | 316(L) |
| 30 | Steel wire | 304 | 304 | 304 | 304 | 316 |
| 31 | Pin | 304 | 304 | 304 | 304 | 316 |

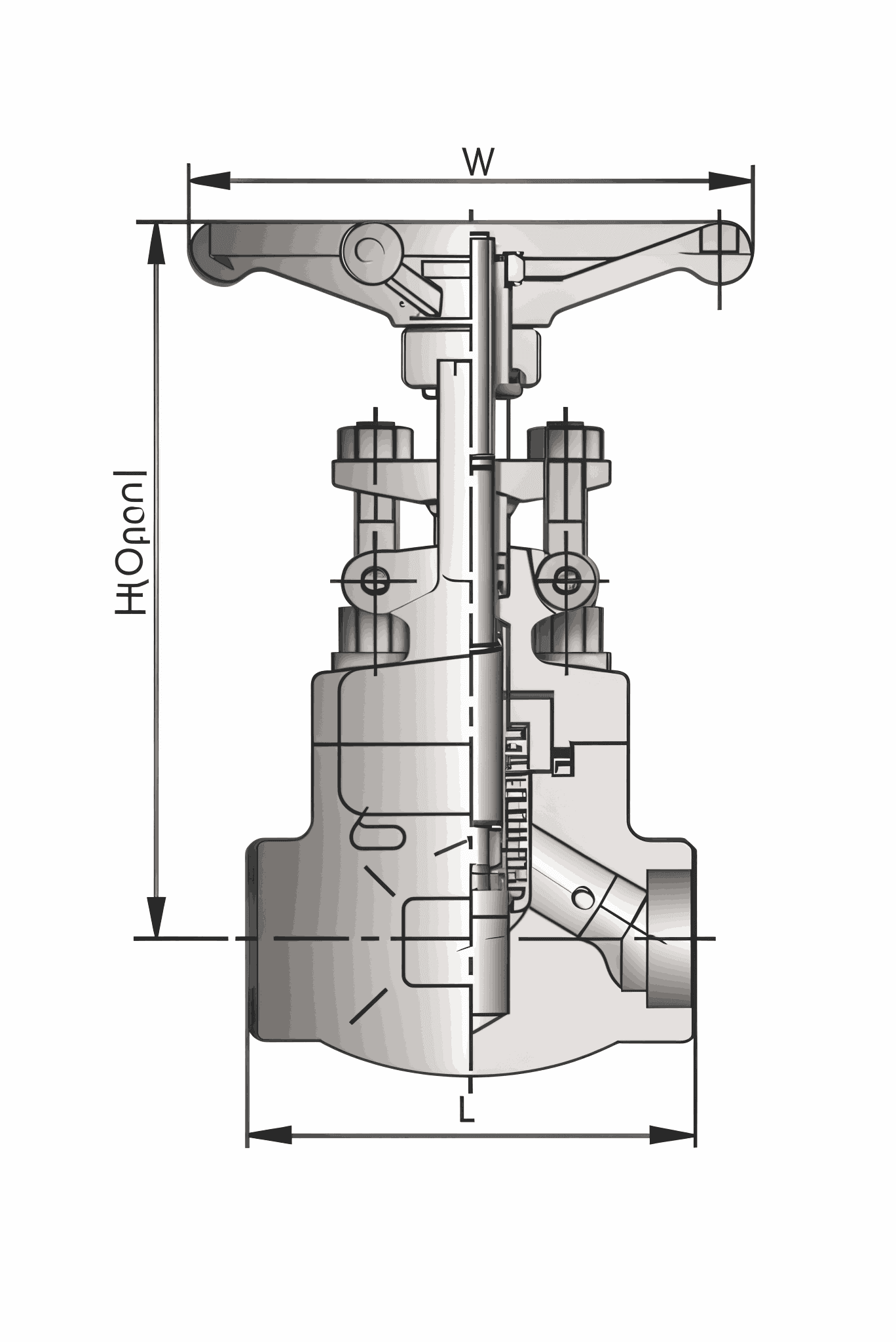

| Specification (NPS) | R.P | -- | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 |
|---|---|---|---|---|---|---|---|---|---|---|
| F.P | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | |
| Face to face (mm) | L | 79 | 79 | 92 | 111 | 120 | 152 | 172 | 200 | -- |
| Handwheel diameter (mm) | W | 100 | 100 | 100 | 125 | 160 | 160 | 180 | 200 | -- |
| Center height (Open) (mm) | H | 162 | 162 | 164 | 200 | 220 | 257 | 295 | 350 | -- |
| Flow port dimension (mm) | d | 7.0 | 9.0 | 13 | 17.5 | 23 | 30 | 35 | 46 | -- |
| Weight(Kg) | 2.5 | 2.3 | 2.4 | 4.35 | 5.75 | 7.8 | 12.5 | 17.5 | -- | |
| Specification (NPS) | R.P | -- | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 |
|---|---|---|---|---|---|---|---|---|---|---|
| F.P | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | |
| Face to face (mm) | L | 79 | 92 | 111 | 120 | 152 | 172 | 200 | -- | |
| Handwheel diameter (mm) | W | 100 | 100 | 125 | 160 | 160 | 180 | 200 | -- | |
| Center height (Open) (mm) | H | 237 | 237 | 239 | 270 | 298 | 340 | 395 | 470 | |
| Flow port dimension (mm) | d | 9.0 | 13 | 17.5 | 23 | 30 | 35 | 480 | -- | |
| Weight (Kg) | 3.7 | 4.2 | 5.5 | 7.25 | 9.8 | 16 | 21 | -- | ||
| Specification (NPS) | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Face to face (mm) | CL150 | L(RF) L1(BW) | -- | -- | 108 | 117 | 127 | 140 | 165 | 203 |
| CL300 | -- | -- | 152 | 178 | 203 | 216 | 229 | 267 | ||
| CL600 | -- | -- | 165 | 190 | 216 | 229 | 241 | 292 | ||
| Handwheel diameter (mm) | W | -- | -- | 100 | 100 | 125 | 160 | 160 | 180 | |
| Center height (Open) (mm) | CL150/600 | H | -- | -- | 340/350 | 340/350 | 360/375 | 380/400 | 450/470 | 540/570 |
| CL600 | -- | -- | 360 | 360 | 390 | 430 | 500 | 600 | ||
| Flow port dimension (mm) | d | -- | -- | 9 | 13 | 17.5 | 23 | 30 | 35 | |
| Weight (Kg) | CL150 | RF/BW | -- | -- | 4.17/3.5 | 4.8/4.1 | 7.7/6.7 | 12.5/11.5 | 14/11.5 | 21.5/18 |
| CL300 | RF/GW | -- | -- | 4.5/3.7 | 5.2/4.5 | 8.3/7.7 | 14.5/12.5 | 16/13.5 | 24/20 | |
| CL600 | RF/BW | -- | -- | 6.3/5.2 | 8.6/6.5 | 13.5/10 | 19.5/15.5 | 26/19.5 | 44/38 | |
| Specification (NPS) | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | |
|---|---|---|---|---|---|---|---|---|---|
| Face to face (mm) | L(RF), L1(BW) | 216 | 229 | 254 | 280 | 305 | 368 | ||
| L(RTJ) | 216 | 229 | 254 | 280 | 305 | 371 | |||
| Handwheel diameter (mm) | W | -- | -- | 125 | 125 | 160 | 160 | 180 | 200 |
| Center height (Open) (mm) | H | -- | -- | 380 | 380 | 400 | 450 | 520 | 650 |
| Flow port dimension (mm) | d | -- | -- | 12 | 15 | 20 | 28 | 32 | 40 |
| Weight (Kg) | -- | -- | 11.6 | 12.3 | 15 | 17.5 | 25 | 38.3 | |
