Globe Valve

Introduction

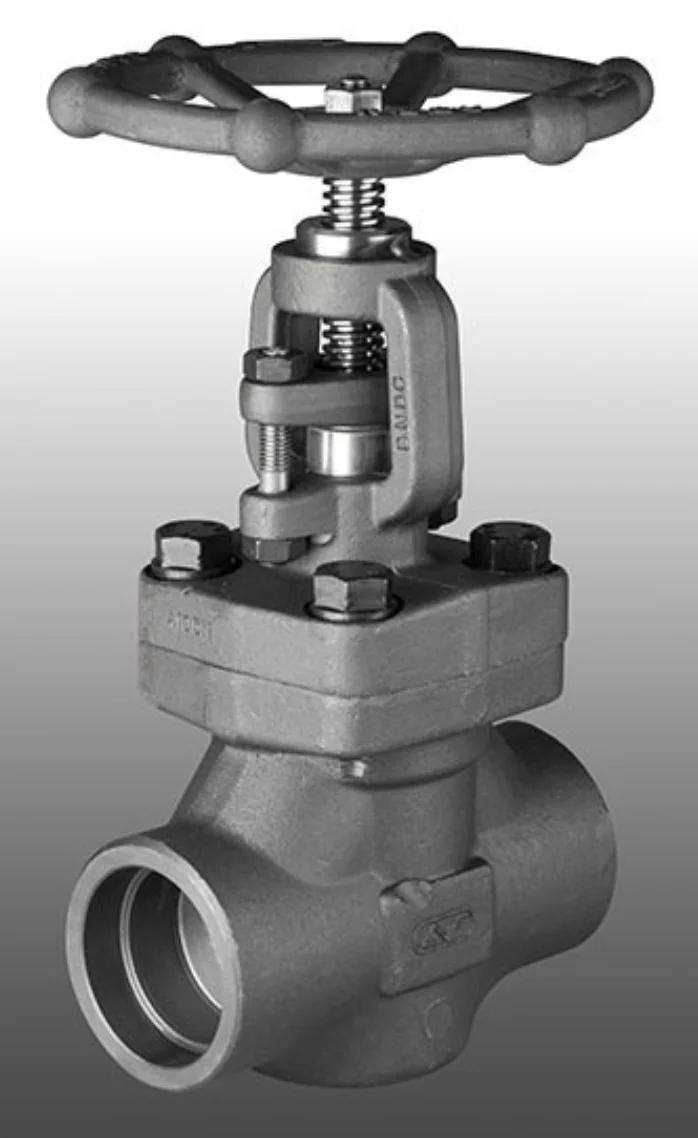

A Forged Globe Valve is a robust and reliable valve designed for precise flow control in high-pressure systems rated up to 800 psi. Manufactured from high-quality forged steel, this valve offers exceptional strength, durability, and resistance to wear and corrosion, making it suitable for demanding applications. The valve operates using a linear motion disc that moves perpendicular to the flow path, ensuring accurate throttling and a tight seal when closed. Its compact and sturdy design allows it to perform efficiently under high-pressure and high-temperature conditions.

This valve is widely used in industries where precise flow regulation is critical, such as oil and gas, power generation, chemical processing, and water treatment. Its ability to withstand challenging operating conditions and deliver consistent performance makes it an indispensable component in a variety of industrial processes.

Applications

Forged Globe Valve is trusted across various industries for its precision, durability, and reliability. Explore its wide-ranging applications below:

Oil & Gas

Used to control the flow of crude oil, natural gas, and refined products in high-pressure pipelines, ensuring reliable operation and flow regulation.

Power Generation

Employed in steam, feedwater, and cooling systems to regulate fluid flow under high-pressure conditions, ensuring system safety and efficiency.

Chemical Processing

Handles the flow control of high-pressure and corrosive chemicals in production systems, ensuring precise regulation and operational safety.

Water Treatment

Used in high-pressure water distribution and treatment systems to regulate flow and maintain consistent pressure during operations.

Industrial Manufacturing

Utilized in manufacturing processes where high-pressure flow control of liquids or gases is required, providing durability and reliable performance.

Dimensional Detail

Applicable Standards

STEEL GLOBE VALVES, API 602
STEEL VALVES, ASME B16.34
FACE TO FACE, MANUFACTURER STANDARD
FACE TO FACE, FLANGED, ASME B16.10
END FLANGES, ASME B16.5
BUTTWELDING ENDS, ASME B16.25
SOCKET WELDING ENDS, ASME B16.11
SCREWED ENDS, ASME B1.20.1
INSPECTION AND TEST API598

Design Description

OUTSIDE SCREW AND YOKE (OS&Y)
BOLTED BONNET
CHOICE OF WC, WELDING BONNET
LOOSE DISC, CHOICE OF PLUG OR BALL
RISING STEM AND HANDWHEELE
SEAT RINGS INTEGRAL WITH BODY
YOKE INTEGRAL WITH BONNET
SW, SOCKET-WELDING ENDS
SC, SCREWED ENDS
BW, BUTTWELDING ENDS

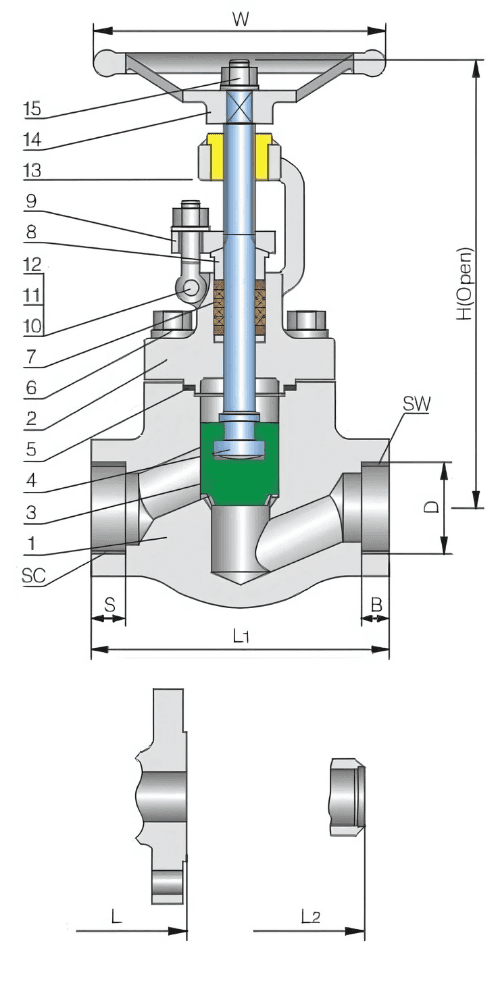

No	Part Name	ASTM Material
No	Part Name	CS	Alloy Steel	Stainless Steel
1	Body	A105	A182-F11	A182-F304	A182-F316
2	Bonnet	A105	A182-F11	A182-F304	A182-F316
3	Disc	A182-F6a	A182-F6a+HF	A182-F304	A182-F316
4	Stem	A276-410	A182-F11	A276-304	A276-316
5	Gasket	Spiral wound (Graphite + 304)		Spiral wound (Graphite + 316)
6	Bonnet Stud	A193-B7	A193-B16	A193-B8	A193-B8
7	Packing	Graphite
8	Gland	A276-410	A276-410	A276-304	A276-316
9	Gland Flange	A105	A105	A182-F304	A182-F314
10	EyeBolt Pin	A276-410		A276-304	A276-316
11	EyeBolt	A193-B7	A193-B16	A193-B8	A193-B8
12	EyeBolt Nut	A194-2H	A194-4	A194-8	A194-8
13	Yokesleeve	A276-410
14	Handwheel	Malleble iron
15	Handwheel Nut	Carbon steel

NOTE :

Seat integral with body.
Sprial wound construction.
Sealing material according to client’s demand.

Dimensions Data ANSI Class 150Lb, Class 300Lb And Class 600Lb

NPS DN	Unit	L1/L2	L(Flanged Ends)			d	SW		SC		H(Open)	DO	WT²¹(Kg)
--	--	--	150Lb	300Lb	600Lb	--	D	B	NPT	S	--	--	--
3/8	in	3.12	4.00	6.00	6.50	0.354	0.693	0.378	3/8	0.540	6.50	4.00	3.8/2.8
10	mm	79	102	152	165	9	17.6	9.6	3/8	13.6	164	100	3.8/2.8
1/2	in	3.12	4.25	6.00	6.50	0.354	0.858	0.378	1/2	0.535	6.50	4.00	5.6/3.4
15	mm	79	108	152	165	9	21.8	9.6	1/2	13.6	164	100	5.6/3.4
3/4	in	3.62	4.62	7.00	7.50	0.512	1.067	0.500	3/4	0.547	6.50	4.00	7.8/4.7
20	mm	92	117	178	190	13	27.1	12.7	3/4	13.9	164	100	7.8/4.7
1	in	4.38	5.00	8.00	8.50	0.689	1.331	0.500	1	0.681	8.00	5.00	12.5/9.2
25	mm	111	127	203	216	17.5	33.8	12.7	1	17.3	203	125	12.5/9.2
1^1/4	in	4.75	5.50	8.50	9.00	0.906	1.677	0.500	1^1/4	0.709	8.88	6.25	17/10.5
32	mm	120	140	216	229	23	42.6	12.7	1^1/4	18	224	160	17/10.5
1^1/2	in	6.00	6.50	9.00	9.50	1.142	1.917	0.500	1^1/2	0.724	10.25	6.25	23.5/13.3
40	mm	152	165	229	241	29	48.7	12.7	1^1/2	18.4	260	160	23.5/13.3
2	in	6.75	8.00	10.50	11.50	1.378	2.406	0.626	2	0.756	11.88	7.00	38.8/18.9
50	mm	172	203	267	292	35	61.1	15.9	2	19.2	300	180	38.8/18.9

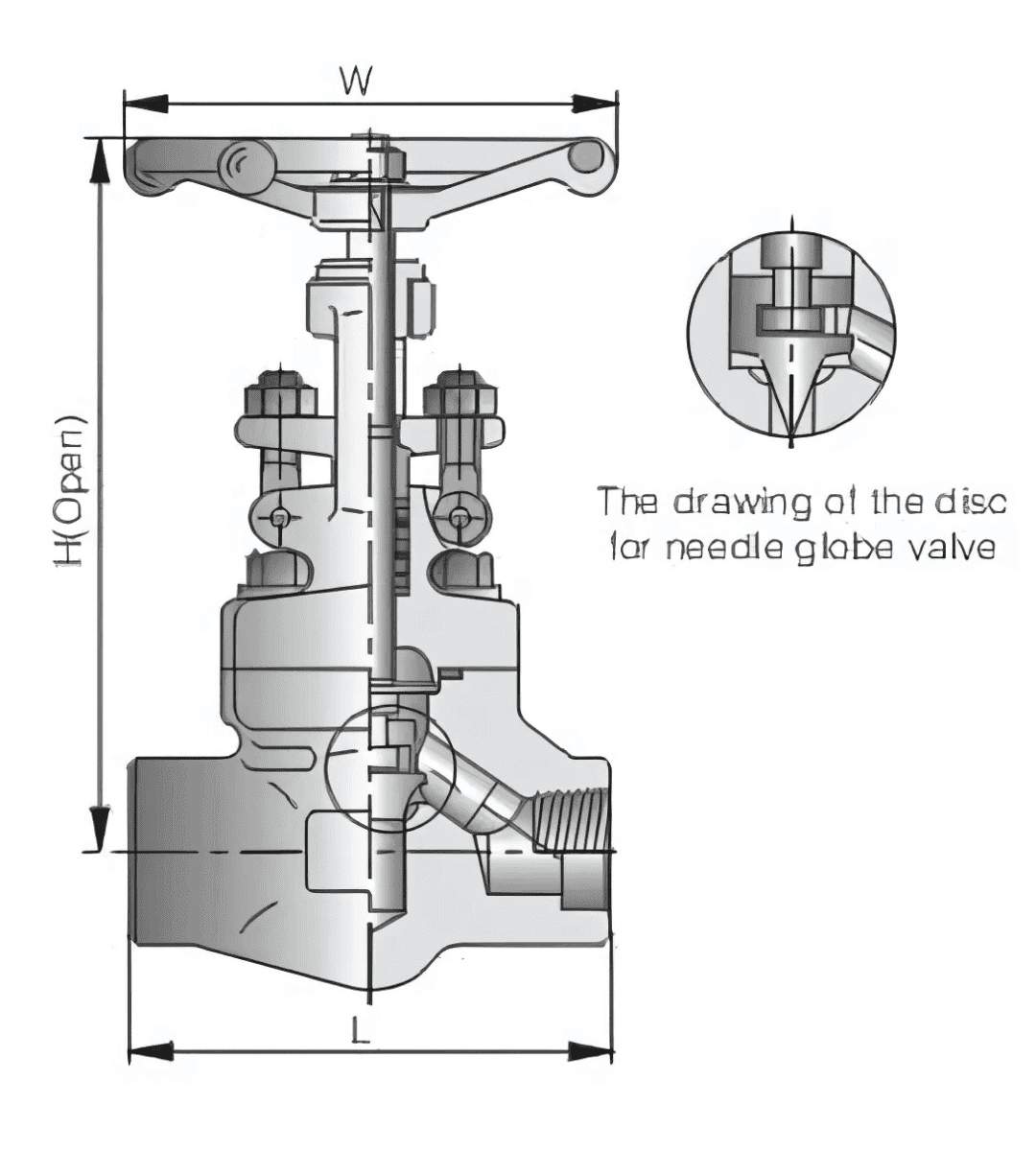

Female threaded and socket welded globe valves

CL800: Bolted & Welded bonnet, full port reducing port outside screw and yoke(OS & Y) Threaded, butt-welded or socket welded ends; design to BS5352

Specification (NPS)	R.P	--	1/2	3/4	1	1 1/4	1 1/2	2	2 1/2	3
Specification (NPS)	F.P	1/4	3/8	1/2	3/4	1	1 1/4	1 1/2	2	2 1/2
Face to face (mm)	L	79	79	92	111	120	152	172	200	--
Handwheel diameter (mm)	W	100	100	100	125	160	160	180	200	--
Center height (Open) (mm)	H	164	164	164	203	224	260	300	355	--
Flow port dimension (mm)	d	7	9	13	17.5	23	30	35	46	--
Weight (Kg)		1.9	2.28	2.37	4.3	5.75	7.8	12.5	17.5	--

CL900-CL1500: Bolted & Welded bonnet, full port reducing port outside screw and yoke(OS & Y) Threaded, butt-welded or socket welded ends; design to BS5352

Specification (NPS)	R.P	--	1/2	3/4	1	1 1/4	1 1/2	2	2 1/2	3
Specification (NPS)	F.P	1/4	3/8	1/2	3/4	1	1 1/4	1 1/2	--	--
Face to face (mm)	L	92	111	111	120	152	172	220	--	--
Handwheel diameter (mm)	W	100	125	125	160	160	180	200	--	--
Center height (Open) (mm)	H	171	207	207	240	258	330	355	--	--
Flow port dimension (mm)	d	7	12	15	20	28	32	40	--	--
Weight (Kg)		2.3	3.7	3.6	3.6	7.6	11.6	15	--	--

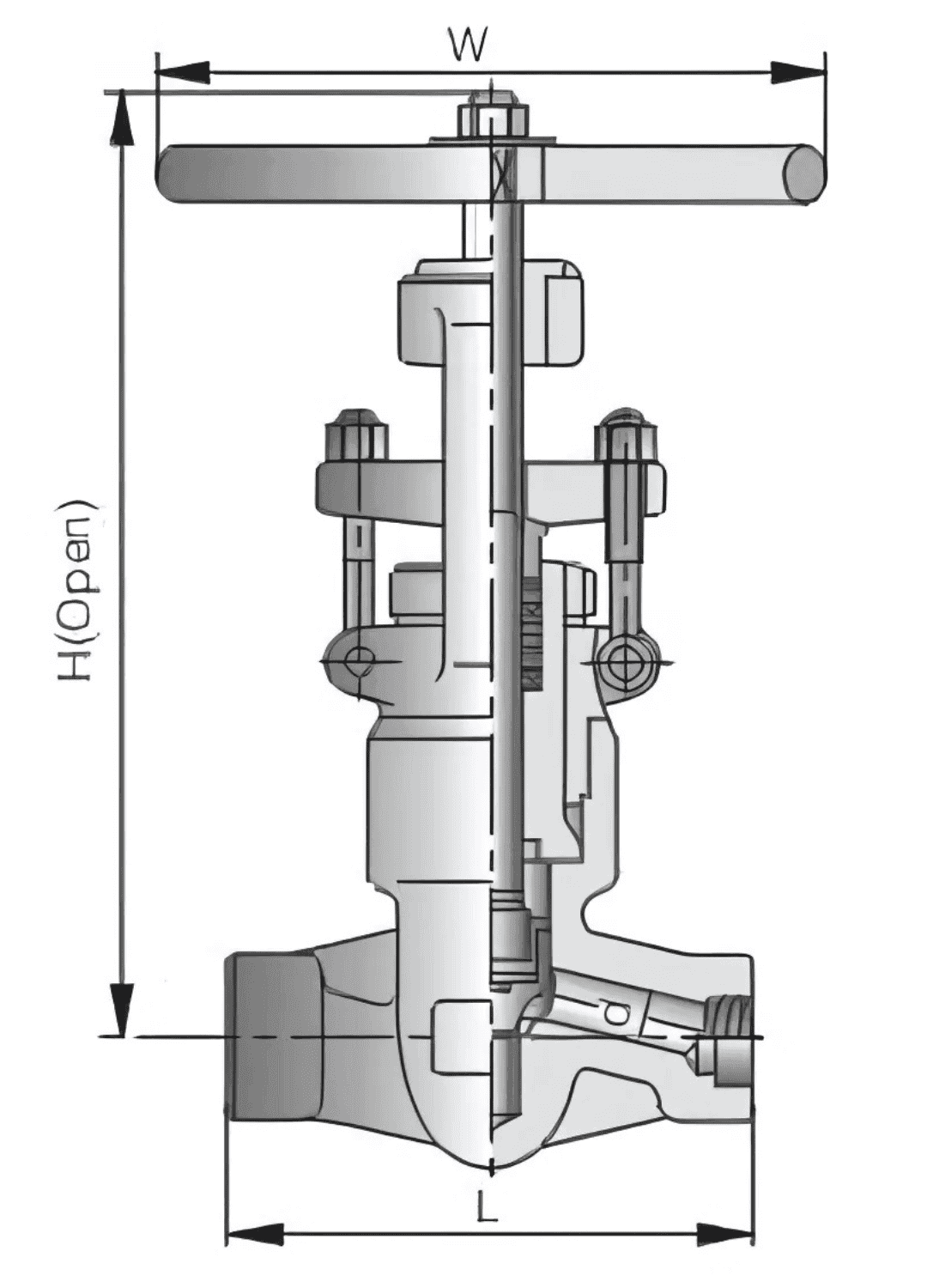

CL900-CL1500: Pressure seal bonnet full port reducing port outside screw and yoke(OS & Y) Threaded, butt-welded or socket welded ends; design conform to BS5352

Specification (NPS)	F.P
Specification (NPS)	F.P	1/2	3/4	1	1 1/4	1 1/2	2	2 1/2
Face to face (mm)	L	140	140	140	178	178	216	--
Handwheel diameter (mm)	W	220	200	200	280	280	300	--
Center height (Open) (mm)	H	320	320	320	440	440	490	--
Flow port dimension (mm)	d	12	15	20	28	32	40	--
Weight (Kg)		11.5	10.8	10.5	19.6	21.1	55.4

CL2500: Pressure seal bonnet full port reducing port outside screw and yoke(OS & Y) Socket welded ends, design conform to ASME B16.34

Specification (NPS)	F.P
Specification (NPS)	F.P	1/2	3/4	1	1 1/4	1 1/2	2	2 1/2
Face to face (mm)	L	186	186	186	232	232	279	--
Handwheel diameter (mm)	W	200	200	200	280	280	300	--
Center height (Open) (mm)	H	375	378	380	490	490	540	--
Flow port dimension (mm)	d	11	14	19	25	28	35	--
Weight (Kg)		12.3	11.6	10.8	26.0	28.4	60

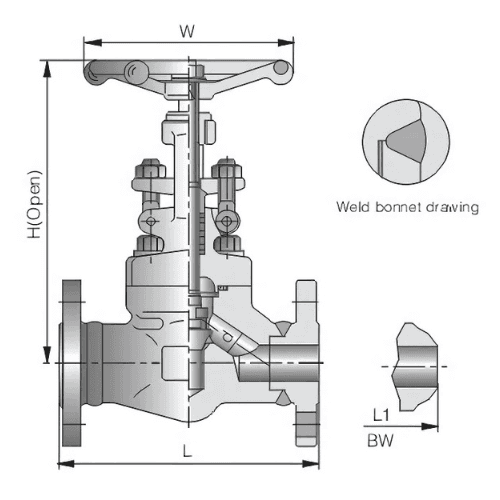

Flange End Globe Valve Dimension Detail

CL150-300-600: Bolted bonnet, reducing port outside screw and yoke(OS & Y) Flange or Butt-welding design to BS5352

Specification (NPS)		W
Specification (NPS)		W	1/4	3/8	1/2	3/4	1	1 1/4	1 1/2	2
Face to Face (mm)	CL150	L(RF) L1(BW)	--	--	108	117	127	140	165	203
	CL300		--	--	152	178	203	216	229	267
	CL600		--	--	165	190	216	229	241	292
Handwheel diameter (mm)		W	--	--	100	100	125	160	160	180
Center height (Open)(mm)	CL150, CL300	H	--	--	180	184	217	224	260	300
Center height (Open)(mm)	CL600	H	--	--	164	164	203	224	260	300
Flow port dimension (mm)		d	--	--	9	13	17.5	23	30	35
Weight (Kg)	CL150	RF	--	--	3.45	4.00	6.19	9.6	10.5	17
	CL150	BW	--	--	2.3	3.6	7.8	8.2	12.0	15.0
	CL300	RF	--	--	3.8	5.1	7.2	12	13.5	19.7
	CL300	BW	--	--	2.8	4.0	8.5	9.2	12.6	16.8
	CL600	RF	--	--	5.6	7.8	12.5	17	23.5	38.8
	CL600	BW	--	--	3.4	4.7	9.2	10.5	13.3	18.9

CL900-CL1500: Bolted bonnet, full port outside screw and yoke(OS & Y) Flange or Butt-welding design to BS5352

Specification (NPS)
Specification (NPS)		1/4	3/8	1/2	3/4	1	1 1/4	1 1/2	2
Face to Face (mm)	L(RF) L(RTJ)	--	--	216	229	254	279	305	368
Face to Face (mm)	L(RTJ)	--	--	216	229	254	279	305	371
Handwheel diameter (mm)	W	--	--	125	125	160	160	180	200
Center height (Open)(mm)	H	--	--	207	207	230	160	300	355
Flow port dimension (mm)	d	--	--	12	15	20	28	32	40
Weight (Kg)		--	--	11	13.2	17.4	19	24.5	31

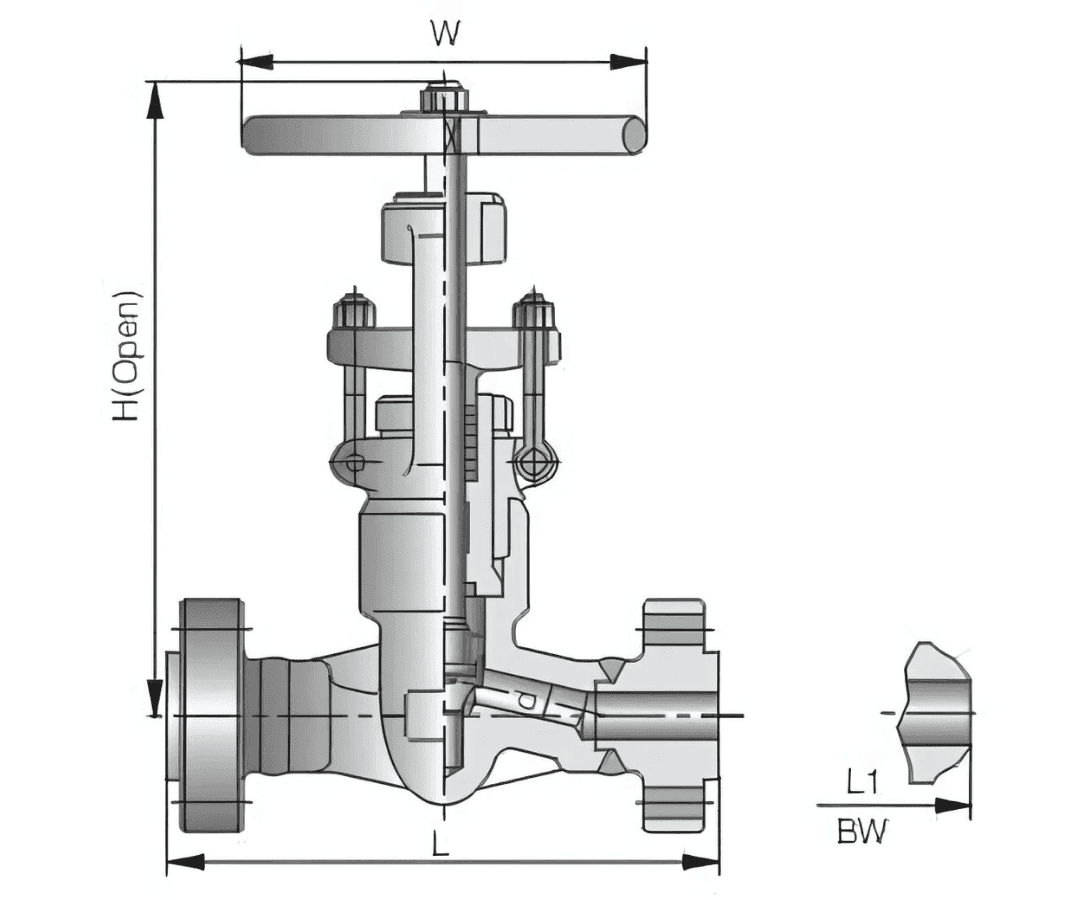

CL2500: Pressure seal bonnet, full port outside screw and yoke(OS & Y) Welding Flange or Butt-welded design conform to ASME B16.34

Specification (NPS)
Specification (NPS)		1/4	3/8	1/2	3/4	1	1 1/4	1 1/2	2
Face to Face (mm)	L(RF) L(RTJ)	--	--	264	273	308	349	384	451
Face to Face (mm)	L(RTJ)	--	--	264	273	308	349	387	454
Handwheel diameter (mm)	W	--	--	200	200	280	280	280	300
Center height (Open)(mm)	H	--	--	320	320	320	440	440	490
Flow port dimension (mm)	d	--	--	11	14	19	25	28	35
Weight (Kg)		--	--	21.5	24.7	30.4	48.1	58.1	130
