Instrumentation Needle Valve

Introduction

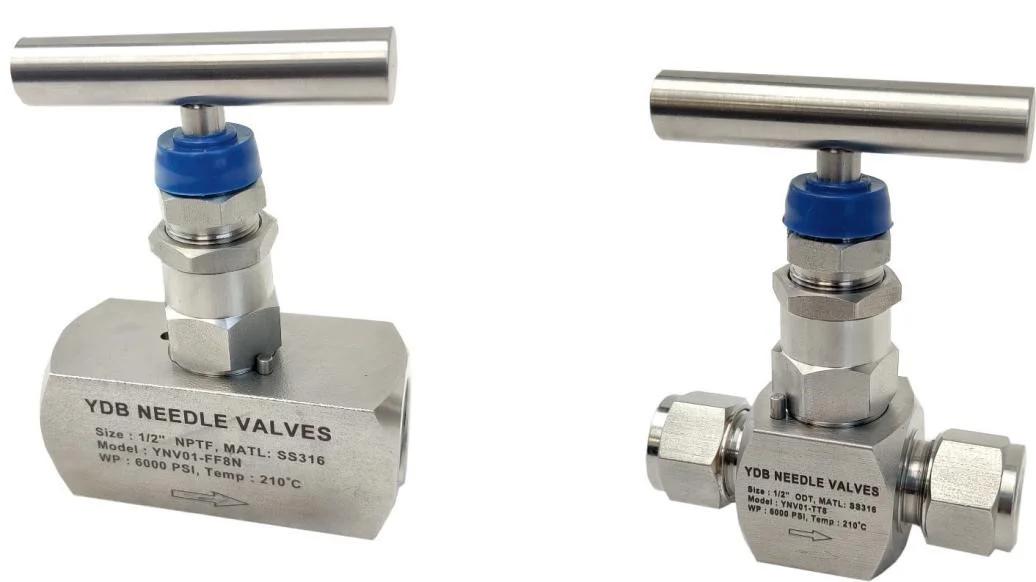

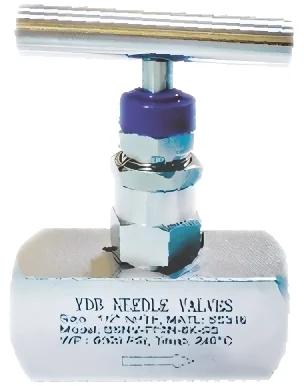

The YNV01 Series Instrumentation Needle Valve from YDB Valve is designed for precise flow control in high-pressure and high-accuracy applications. With a finely threaded stem and robust stainless steel construction, it provides smooth, gradual regulation of flow, making it ideal for instrumentation panels, gas sampling systems, and chemical injection lines. The compact design and high-pressure capability ensure reliable operation even in demanding environments.

Engineered for versatility, the YNV01 offers various end connections, seat materials, and pressure ratings to suit a wide range of media and applications. Its leak-tight shut-off and corrosion-resistant body ensure long service life with minimal maintenance. Whether installed in laboratories, refineries, or industrial process lines, the YNV01 delivers reliable performance, safety, and precision control where it matters most.

Applications

Instrumentation Needle Valve is trusted across various industries for its precision, durability, and reliability. Explore its wide-ranging applications below:

Oil & Gas icon

Oil & Gas

Gate valves are crucial in managing the flow of crude oil, natural gas, and refined products in pipelines and processing plants. They are widely used in both upstream (extraction) and downstream (refining and distribution) operations for reliable isolation and flow control.

Water Treatment icon

Water Treatment

Gate valves are essential in water distribution and treatment plants, providing isolation during system maintenance or repairs. They are installed in pipelines to efficiently manage water flow and ensure reliable system operation.

Power Generation icon

Power Generation

Gate valves are widely used in thermal and nuclear power plants, particularly in steam, feedwater, and cooling systems. They offer reliable isolation in high-pressure and high-temperature environments to ensure the smooth operation of power plants.

Chemical & Petrochemical Plants icon

Chemical & Petrochemical Plants

Gate valves play a vital role in controlling the flow of various chemicals and gases within pipelines in chemical and petrochemical plants. They are designed to prevent contamination and protect sensitive equipment.

Pulp and Paper Industry icon

Pulp and Paper Industry

Gate valves are used in pipelines managing raw pulp, chemicals, and water in the pulp and paper industry. They provide effective isolation during maintenance and operational control, ensuring smooth production processes.

Marine & Offshore Applications icon

Marine & Offshore Applications

In marine and offshore settings, gate valves are installed in ballast water systems, cargo lines, and fire protection systems on ships and offshore platforms. They help ensure safe and efficient operations in harsh marine environments.

Industrial Manufacturing icon

Industrial Manufacturing

Gate valves are used in various industrial manufacturing processes, including steel production, mining, and food processing, to handle a wide range of process fluids and provide reliable isolation and flow control.

HVAC Systems icon

HVAC Systems

Gate valves are commonly used in chilled water and condenser systems to ensure unidirectional flow. They help maintain system efficiency, protect pumps, and other components from damage, ensuring smooth operation in HVAC systems.

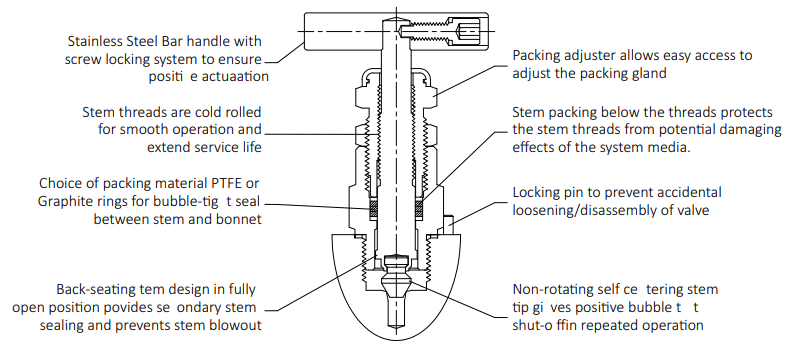

Features & Benefits

    High-Pressure Valves

  • ✔Available in material SS316, Inconel, Monel, Duplex etc. all wetted parts in accordance with NACE MR01-75
  • ✔Heat Code Traceable to certified material test report
  • ✔Low operating torques
  • ✔Bar stock Body in Straight Pattern
  • ✔Anti Blow-out stem, Variety of stem tips
  • ✔PTFE packing standard
  • ✔Flow coefficient (Cv) From 0.35 to 1.8
  • ✔Orifice size : 0.156" (4.0 mm), 0.250" (6.4mm), 0.375" (9.5mm)
  • ✔Variety of end configuration includes YDB ODT Tube Fittings, Male / Female NPT, BSPT, BSPP pipe and tube socket weld connections
  • ✔Every valve is factory tested.

    Operating parameters

  • ✔Pressure Rating : upto 6000 psig (413 bar) at CWP
  • ✔Temperature Rating : -54OC to 232OC with standard PTFE packing upto 426OC with optional Graphite packing

    Applications

  • ✔General Plant Service
  • ✔Instrument Isolation
  • ✔Hydraulic and Pneumatic
  • ✔Pressure measurement devices
  • ✔Venting

Technical Data

The Temperature and Pressure rating for a standard valve with PTFE packing

TemperaturePressure
psigbar
-54°C to 38°C6000408
-54°C to 93°C5160351
-54°C to 148°C4660317
-54°C to 204°C4280291
-54°C to 232°C4130289

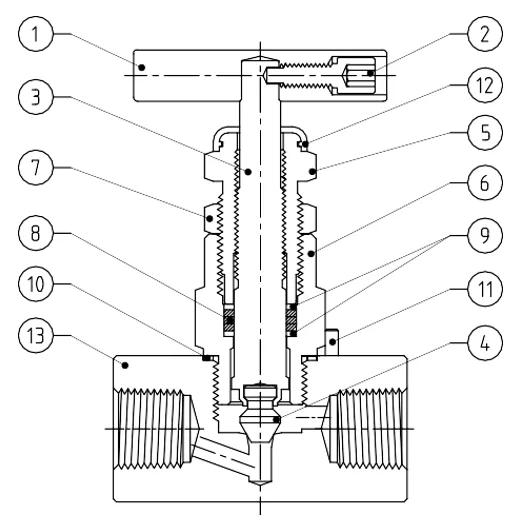

Material Of Constructions

Sr No.DescriptionMaterial
1.Bar HandleSS316
2.Set ScrewSS316
3.StemSS316
4.Stem TipSS316
5.Packing BoltSS316
6.Lower BonnetSS316
7.Lock NutSS316
8.PackingPTFE
9.Packing WasherSS316
10.WasherSS316
11.Lock PinSS316
12.Dust CapPVC
13.Valve BodySS316

    Testing

  • ✔Standard Test: Each valve is factory tested with nitrogen at 1000 psig (69 bar) for leakage at the seat and packing.
  • ✔Optional Hydrostatic test: This test is performed with de-ionised water at 1.5 time the working pressure.

    STEM TYPE

    YDB Needle Valves are available with choice of optional stem to provide greater flexibility.

  • ✔NON-ROTATING (NR) : It is Standard self centering non rotating stem tip typically used in high cycle application to extend the valve life.
  • ✔V-STEM (VS) : It is used for general purpose liquid and gases.
  • ✔SOFT SEAT (SS) : A soft seat stem requires a lower sealing torque, It is replaceable and suitable for temperature upto 120OC
  • ✔REGULATING STEM (RS) : It is used where some degree of flow control required.

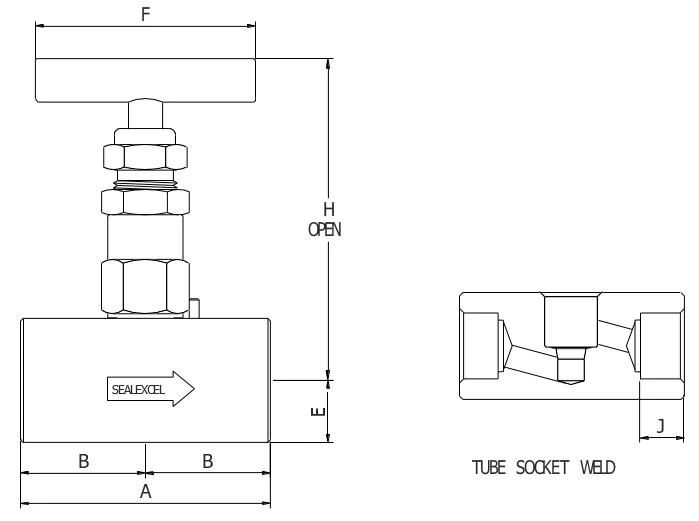

Dimensional Details

END CONNECTORDIMENSION (MM)PART NO.
INLETOUTLETABCDEF
1/4" ODT1/4" ODT73.036.525.44.373.054.0YNV01-TT4
3/8" ODT3/8" ODT73.036.528.64.388.060.0YNV01-TT6
1/2" ODT1/2" ODT77.838.928.66.488.060.0YNV01-TT8
3/4" ODT3/4" ODT85.242.931.86.4114.067.0YNV01-TT12
6MM ODT6MM ODT73.036.525.44.373.054.0YNV01-TT6M
8MM ODT8MM ODT73.036.525.44.373.054.0YNV01-TT8M
10MM ODT10MM ODT73.036.528.66.488.060.0YNV01-TT10M
12MM ODT12MM ODT77.838.928.66.488.060.0YNV01-TT12M
1/8" FNPT1/8" FNPT57.228.625.44.373.052.0YNV01-FF2N
1/4" FNPT1/4" FNPT57.228.625.44.373.054.0YNV01-FF4N
3/8" FNPT3/8" FNPT57.228.628.66.488.060.0YNV01-FF6N
1/2" FNPT1/2" FNPT66.633.331.86.488.067.0YNV01-FF8N
3/4" FNPT3/4" FNPT69.834.935.09.511467.0YNV01-FF12N
1" FNPT1" FNPT82.641.345.09.512273.0YNV01-FF16N
1/4" MNPT1/4" MNPT57.228.625.44.373.054.0YNV01-MM4N
1/4" MNPT1/4" FNPT60.230.125.44.373.054.0YNV01-MF4N
1/2" MNPT1/2" FNPT69.834.931.86.488.060.0YNV01-MF8N
3/4" MNPT3/4" MNPT76.238.135.09.5114.067.0YNV01-MF12N
1" MNPT1" FNPT85.842.945.09.5122.073.0YNV01-MF16N
1/4" TSW1/4" TSW57.228.625.44.373.054.0YNV01-TSW4
3/8" TSW3/8" TSW57.228.628.66.488.060.0YNV01-TSW6
1/2" TSW1/2" TSW66.633.328.66.488.060.0YNV01-TSW8
3/4" TSW3/4" TSW69.834.931.89.5114.067.0YNV01-TSW12

- Dimensions shown with YDB ODT Nut are finger tight

- Dimensions are for reference only and subject to change

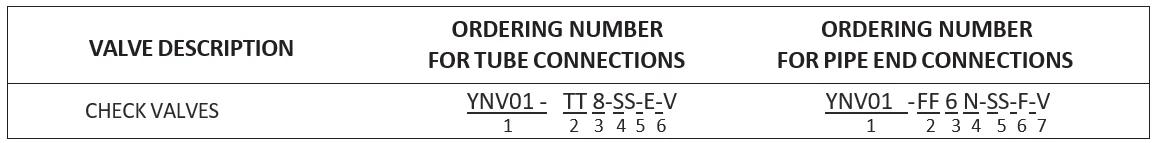

Ordering Information

1. VALVE SERIES CODE DESCRIPTION

Ball Valves series : YNV01

    2. END CONNECTION TYPE CODE DESCRIPTION

  • ✔TT - YDB ODT Tube Fittings
  • ✔MM - Male pipe thread
  • ✔FF - Female pipe thread
  • ✔MT - Male pipe thread to YDB ODT Tube Fittings
  • ✔MF - Male pipe thread to Female pipe thread

3. END CONNECTION SIZE CODE DESCRIPTION TUBE OD SIZE

FRACTIONALMETRIC
SIZECODESIZECODE
1/4" ODT46mm ODT6M
3/8" ODT68mm ODT8M
1/2" ODT810mm ODT10M
3/4" ODT1212mm ODT12M
1" ODT1616mm ODT16M
22mm ODT22M
25mm ODT25M

PIPE THREAD SIZE

SIZECODESIZECODE
1/8"21/2"8
1/4"43/4"12
3/8"61"16

    4. PIPE THREAD TYPE CODE DESCRIPTION

  • ✔N - Male / Female NPT
  • ✔RT - Male / Female BSPT
  • ✔RG - Female BSP
  • ✔SE - SAE Straight Thread

    5. MATERIAL OF CONSTRUCTIONS

  • ✔SS - SS316
  • ✔CS - Carbon Steel

    6. VALVE / SEAT MATERIAL

  • ✔F - Peek
  • ✔E - PTFE

    7. SEAL MATERIAL

  • ✔ B - Buna-N
  • ✔M - EPDM
  • ✔V - Vitonв
