3 Valve Manifolds are an essential component in industrial instrumentation systems used for pressure measurement, monitoring, and control. These manifolds provide more flexibility and functionality than simpler 2-valve designs by incorporating an additional valve, enabling pressure equalization, isolation, and venting in a single compact unit. The additional valve allows for equalizing pressure between the instrument and the process, which is particularly important when working with differential pressure applications.
The 3 Valve Manifolds is typically used in applications where differential pressure measurement is required, such as in flow measurement, level measurement, and other processes where two different pressure readings need to be monitored or compared. These manifolds allow for accurate calibration and maintenance of measurement devices without disturbing the operation of the process, ensuring system reliability and safety.
3 Manifolds Valve is trusted across various industries for its precision, durability, and reliability. Explore its wide-ranging applications below:
Pressure measurement and monitoring in pipelines, oil rigs, and refineries.
Flow, reservoirs and pressure monitoring in water treatment plants and distribution systems.
Monitoring of pressure and temperature in steam and cooling systems.
Pressure and flow measurement in reactors, pipelines, and distillation columns, and fluid transfer lines.
Flow, temperature, and pressure monitoring in manufacturing processes.
Pressure monitoring in fuel systems, hydraulic systems, and cooling circuits.
Fuel and exhaust control systems, coolant systems. The 2-piece design provides a lightweight, space-saving solution for controlling fluids in automotive applications,
The Temperature and Pressure rating for a standard valve with PTFE packing.
| Temperature | Pressure | |
|---|---|---|
| psig | bar | |
| -54 C to 38 C | 6000 | 408 |
| -54 C to 93 C | 5160 | 351 |
| -54 C to 148 C | 4660 | 317 |
| -54 C to 204 C | 4280 | 291 |
| -54 C to 232 C | 4130 | 289 |
| Sr. No | Description | Material |
|---|---|---|
| 1. | Bar Handle | SS316 |
| 2. | Set Screw | SS316 |
| 3. | Steam | SS316 |
| 4. | Stem Tip | SS316 |
| 5. | Packing Bolt | SS316 |
| 6. | Lower Bonnet | SS316 |
| 7. | Lock Nut | SS316 |
| 8. | Packing | PTFE |
| 9. | Packing Washer | SS316 |
| 10. | Washer | SS316 |
| 11. | Lock Pin | SS316 |
| 12. | Dust Cap | PVC |
| 13. | Valve Body | SS316 |

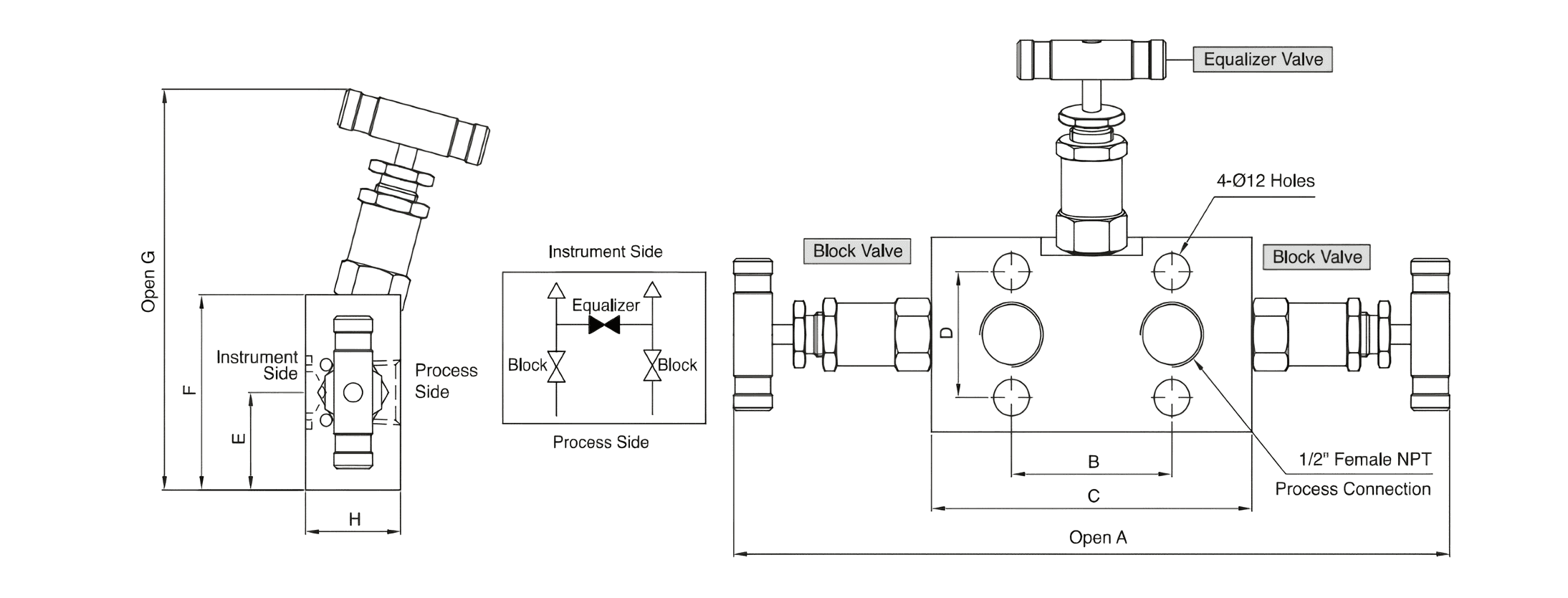

| Part Number | End Connections | Weight Dimensions | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Process | Instrument | A | B | C | D | E | F | G | |
| YM3V-F8N | 1/2" Female NPT | 228.0 | 31.0 | 86.0 | 24.0 | 78.0 | 106.0 | 33.5 | |

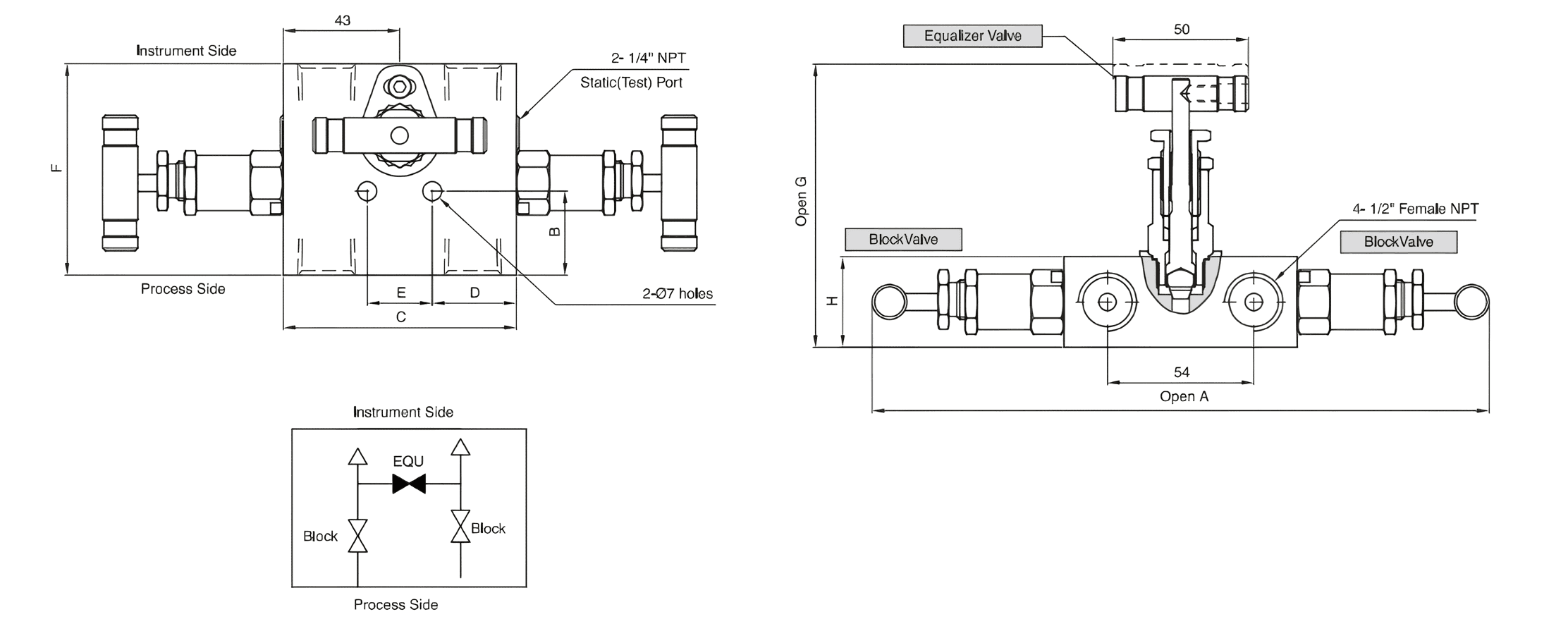

| Part Number | End Connections | Weight Dimensions | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Process | Instrument | A | B | C | D | E | F | G | H | |
| YM2V-F8N | 1/2" Female NPT | Flange | 228.5 | 43.0 | 86.0 | 55.6 | 54.0 | 97.0 | 87.7 | 31.8 |

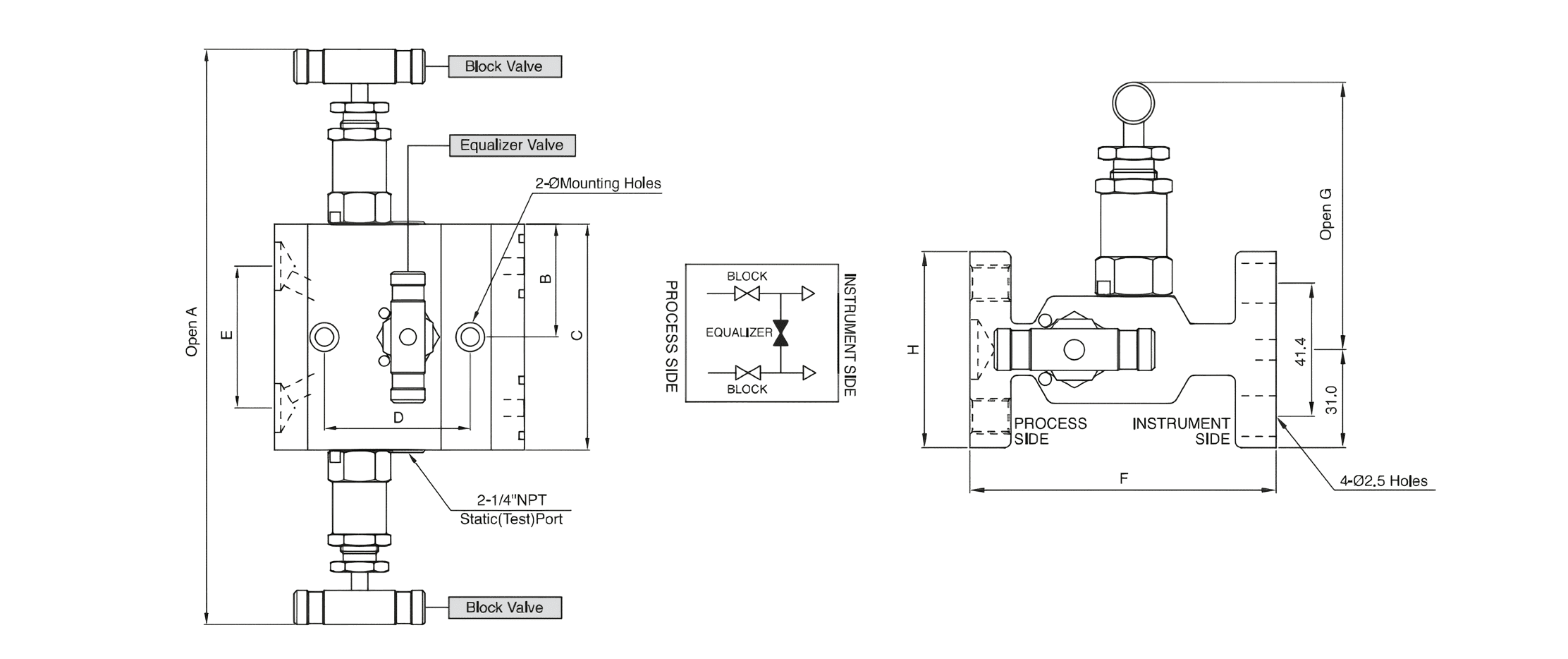

| Part Number | End Connections | Weight Dimensions | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Process | Instrument | A | B | C | D | E | F | G | H | |
| YM3VDF | Flange | Flange | 228.0 | 43.0 | 86.0 | 55.6 | 54.0 | 96.4 | 87.7 | 62.0 |

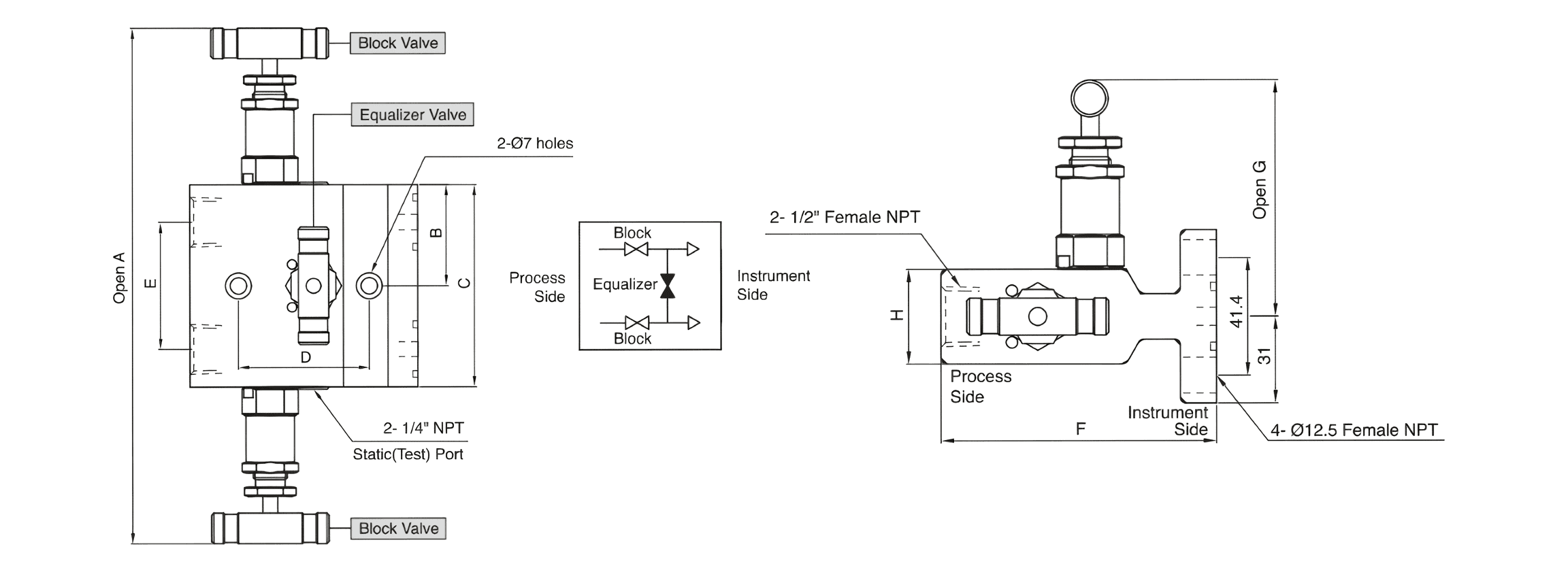

| Part Number | End Connections | Weight Dimensions | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Process | Instrument | A | B | C | D | E | F | G | H | |
| YM3VD-F8N | 1/2" Female NPT | Flange | 250.0 | 54.0 | 108.0 | 41.4 | 32.0 | 64.0 | 136.0 | 32.0 |
| Flange Bolt | Part Number | Hex Size mm (in.) | Length mm (in.) | Threads | Bolt Material Designator |
|---|---|---|---|---|---|
| Standard Hex Head Bolt | YM-FB | 15.87 (5/8) | 25.0 (1.0) | 7/16-20 | Stainless Steel: -S Carbon Steel: -C |
| Long Stud with Hex Nut | YM-LFB | 58.0 (1.28) | |||
| Short Hex Head Bolt | YM-SFB | 22.2 (0.875) |
| Seal Material | Ordering No. | Temperature Rating |
|---|---|---|
| Viton | YM-FS-V | -20 ~ 450 (-28 ~ 232) |
| PTFE | YM-FY | -65 ~ 250 (-53 ~ 121) |
| Grafoil | YM-FY-GR | -65 ~ 1000 (-53 ~ 537) |
| Size (inch) | 1/2 | Designation | 8 |
|---|
| Size (inch) | 1/2 | Designation | 8N |
|---|
