Monoflange Isolation Valve

Introduction

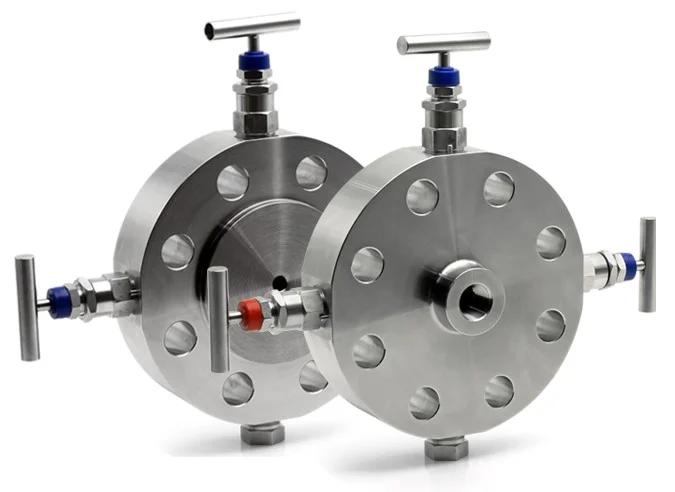

The Monoflange Isolation Valve is a specialized valve design that integrates a valve and flange connection into a single compact unit, making it an ideal solution for applications requiring space-saving, high-performance flow control. This series is designed to reduce installation time and cost by eliminating the need for additional flanged connections, offering a streamlined solution without compromising on functionality or safety.

Made from high-strength materials like stainless steel, The Monoflange Isolation ensures durability, corrosion resistance, and leak-tight sealing, making it suitable for a variety of demanding industrial environments. Its single-block construction ensures robust performance even under high-pressure and temperature conditions, providing excellent reliability and minimal maintenance.

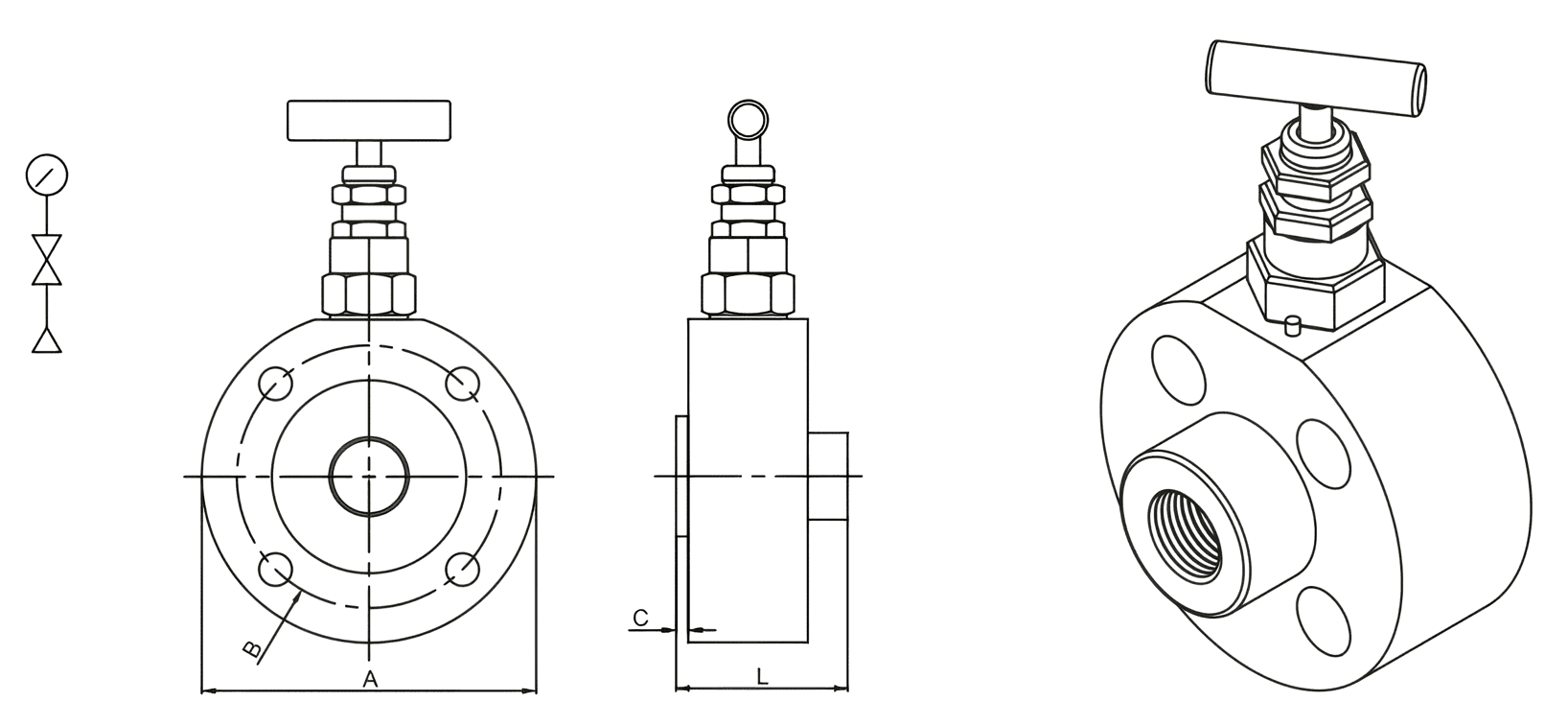

Dimensional Detail

Size	Class	Dimensions
Size	Class	A	B	C	L
1/2	150	88.90	60.45	1.59	60.00
	300	95.25	66.55	1.59	60.00
	600	95.25	66.55	6.35	60.00
	900/1500	120.65	82.55	6.35	60.00
	2500	133.35	88.90	6.35	60.00
3/4	150	98.55	69.85	1.59	60.00
	300	117.35	82.55	1.59	60.00
	600	117.35	82.55	6.35	60.00
	900/1500	130.05	88.90	6.35	60.00
	2500	139.70	95.25	6.35	60.00
1	150	107.95	79.25	1.59	60.00
	300	123.95	88.90	1.59	60.00
	600	123.95	88.90	6.35	60.00
	900/1500	149.35	101.60	6.35	67.00
	2500	158.75	107.95	6.35	67.00
1-1/2	150	127.00	98.55	1.59	67.00
	300	155.45	114.30	1.59	67.00
	600	155.45	114.30	6.35	67.00
	900/1500	177.80	123.95	6.35	74.00
	2500	203.20	146.05	6.35	80.00
2	150	152.40	120.65	1.59	60.00
	300	165.10	127.00	1.59	60.00
	600	165.10	127.00	6.35	60.00
	900/1500	215.90	165.10	6.35	67.00
	2500	234.95	171.45	6.35	80.00
